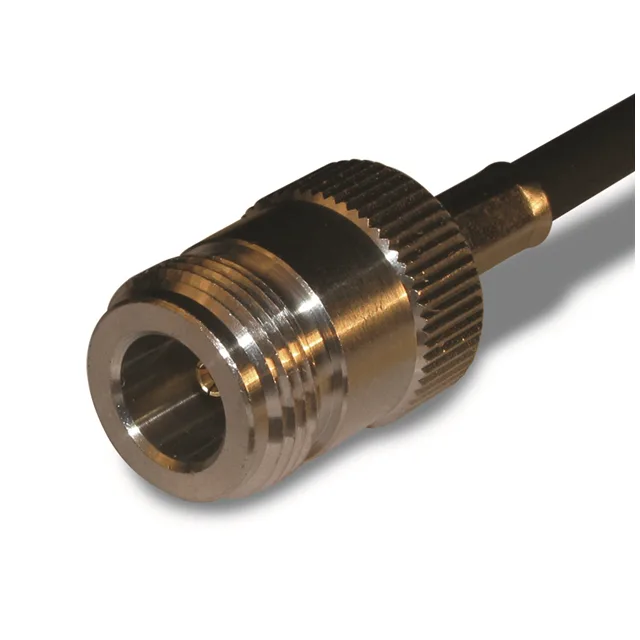

Amphenol RF N Type jack, 50 Ohm, 11 GHz, 1500 V, crimp termination, threaded, free-hanging, kit includes connector + contact + ferrule.
| Parameter | Value |
|---|---|
| Mounting | Free Hanging (In-Line) |
| Connector type | Jack, Female Socket |
| Fastening type | Threaded |
| Voltage rating | 1500 V |
| Frequency - max | 11 GHz |
| Cable group | RG-8X, Belden 9258, LMR-240 |
| Operating temperature | -65°C~165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Phosphor Bronze |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Contact, 1 Ferrule |
| Impedance | 50Ohm |
| Body finish | Nickel |
| Mating cycles | 500 |
| Insertion loss | 0.15dB |
| Number of ports | 1 |
| Shield termination | Crimp |
| Contact termination | Crimp |
| Center contact plating | Gold |
The 082-6158: The threaded coupling nut provides a vibration-resistant mate, and the nickel-plated brass body handles the 500 mating cycles typical of field-service RF interconnects.
This jack is designed for RG-8X, Belden 9258, and LMR-240 cables — the three cable groups listed in the spec.
Insertion loss is specified at 0.15 dB — a tight figure that holds across the 11 GHz bandwidth.
The 082-6158 is compatible with RG-8X, Belden 9258, and LMR-240 cable groups.
Yes, the 082-6158 ships as a three-piece kit including one connector body, one centre contact, and one crimp ferrule — everything needed to terminate a single cable end.
