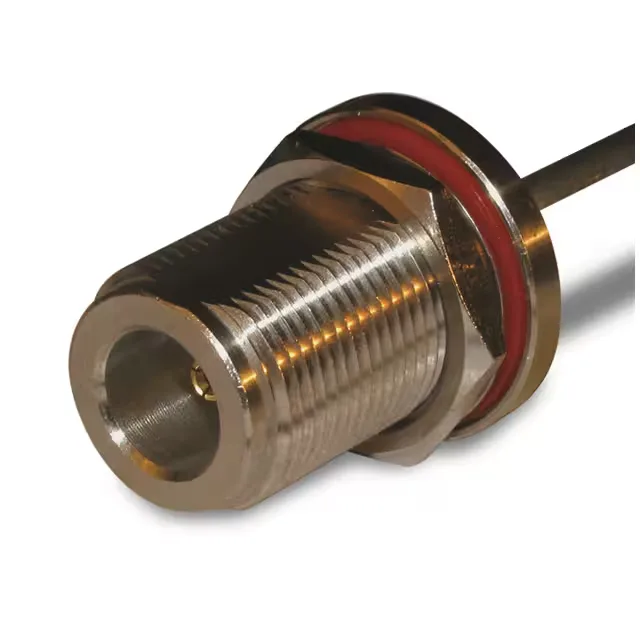

082-6162 — Amphenol product photo
Amphenol

Amphenol RF 082-6162 N Type Jack, 50 Ohm, 11 GHz

MPN082-6162
Active

Amphenol RF N Type jack, female socket, 50 Ohm, 11 GHz, panel mount bulkhead, solder termination, RG-401 cable, includes hardware kit.

$13.1654Ref. price · indicative, final on quote
082-6162 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

082-6162 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating1500 V
Frequency - max11 GHz
Mounting featureBulkhead - Front Side Nut
Cable groupRG-401 (.250\" Semi Rigid)
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze
PackageBulk
Includes7 pcs - 1 Connector, 1 Contact, 1 Gasket, 1 Insulator, 1 Lockwasher, 2 Nuts
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The 082-6162: The connector is pre-configured for RG-401 (.250" semi-rigid) cable, with the center contact and dielectric dimensions matched to that cable's geometry.

What the Kit Includes

This is a complete mounting kit: 1 connector body, 1 contact, 1 gasket, 1 insulator, 1 lockwasher, and 2 nuts. The gasket seals the bulkhead interface; the lockwasher and nuts secure the connector against vibration loosening. No separate hardware ordering is needed for a standard panel install.

The 11 GHz frequency ceiling is the upper limit for specified VSWR; above this the connector's electrical length and internal discontinuities degrade return loss. Insertion loss is 0.15 dB, typical for an N Type at these frequencies. The 1500 V voltage rating is a dielectric withstand figure, not a continuous operating voltage — it reflects the PTFE insulator's breakdown strength.

Mating Cycles and Field Service

The threaded coupling nut provides positive retention under vibration.

Frequently asked questions

Is 082-6162 compatible with RG-402 cable?

No. The 082-6162 is specified for RG-401 (.250" semi-rigid) cable. RG-402 (.141" semi-rigid) has a smaller center conductor and different dielectric diameter — the connector's center contact and insulator are not dimensioned for it.

Does 082-6162 include all mounting hardware?

Yes. The kit includes 1 connector body, 1 contact, 1 gasket, 1 insulator, 1 lockwasher, and 2 nuts — everything needed for a standard bulkhead mount.
