Amphenol 082-6303

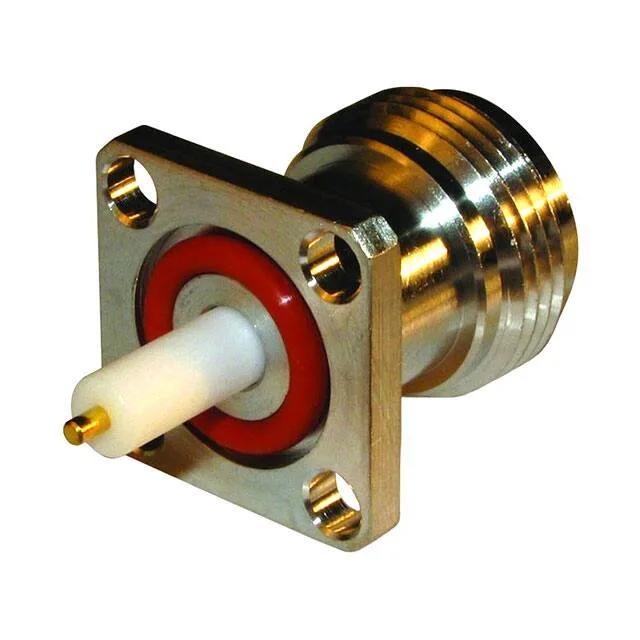

082-6303 Amphenol RF N-Type Receptacle, 50 Ohm, 11 GHz

MPN 082-6303
Active

Amphenol RF N-type receptacle, female socket, 50 Ohm, 11 GHz, 1500 V, panel mount with flange, threaded coupling, gold-plated centre contact, weatherproof, 500 mating cycles, Bulk.

$11.6241 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

082-6303 key specifications
ParameterValue
MountingPanel Mount
Connector typeReceptacle, Female Socket
Fastening typeThreaded
Voltage rating1500 V
Frequency - max11 GHz
IP ratingWeatherproof
Mounting featureFlange
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialPhosphor Bronze

All specifications

082-6303 additional specifications
ParameterValue
PackageBulk
FeaturesExtended Insulation
Includes2 pcs - 1 Connector, 1 Gasket
Impedance50Ohm
Body finishWhite Bronze
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

N-Type Panel Receptacle for 11 GHz RF Paths

The 082-6303: The 1500 V voltage rating reflects the air-gap and creepage distances in the N-type shell geometry, not the signal level on a typical RF line; it means the connector can handle high-power RF without flashover. Mounting is via a flange with four holes — the connector bolts to a panel or bulkhead, and the threaded coupling nut on the mating plug locks with a standard N-type wrench. A gasket is included in the package, which, combined with the weatherproof ingress protection, makes this suited for outdoor enclosures or antenna mounts where moisture ingress would degrade the signal path.

RF Performance and Material Choices

The dielectric is PTFE, the standard low-loss material for RF connectors up through Ku-band — its stable dielectric constant keeps the 50 Ohm impedance consistent across the rated frequency range. The shield termination is solder — the braid or foil of the coax cable is soldered to the body, giving a continuous ground path that preserves the impedance through the transition. The extended insulation increases creepage distance for the 1500 V rating.
