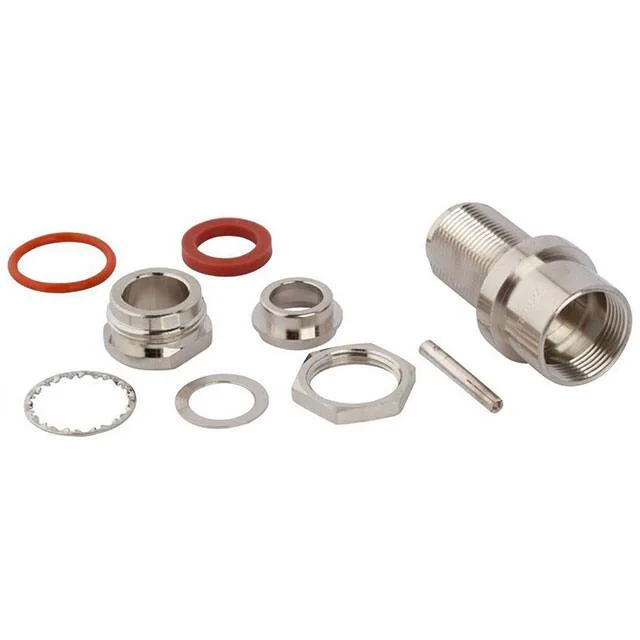

082-67 — Amphenol product photo
Amphenol

Amphenol RF 082-67 N-Type Jack, 50 Ohm, 11 GHz, Bulkhead

MPN082-67
Active

Amphenol RF N-Type jack, female socket, 50 Ohm, 11 GHz, 1500 V, bulkhead front-side nut, solder termination, silver-plated beryllium copper contact, weatherproof, -65°C~165°C, includes mounting hardware kit.

$1.8300Ref. price · indicative, final on quote
082-67 datasheet
StockIn Stock (16)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

082-67 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeThreaded
Voltage rating1500 V
Frequency - max11 GHz
Ingress protectionWeatherproof
Mounting featureBulkhead - Front Side Nut
Cable groupRG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes9 pcs - 1 Connector, 1 Braid Clamp, 1 Clamp, 1 Contact, 2 Gaskets, 1 Lockwasher, 1 Nut, 1 Washer
Impedance50Ohm
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingSilver

Product details

N-Type Jack for RG-8/213/214 Cable — What This Connector Does

The Amphenol RF 082-67 is a 50 Ohm N-Type jack (female socket) rated to 11 GHz, built for RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, and 393 cable groups. It mounts in a bulkhead with a front-side nut, terminating the shield via solder and the centre contact via solder as well.

What Ships in the Box — Full Mounting Kit

This order code ships as a 9-piece kit: the N-Type jack body, a braid clamp, a cable clamp, the centre contact, two gaskets, a lockwasher, a nut, and a flat washer. No separate hardware sourcing needed — the kit covers the bulkhead seal and cable retention in one BOM line.

Weatherproof and Wide-Temperature — Outdoor Deployment

The threaded fastening type and bulkhead nut provide a vibration-resistant mate that holds the 1500 V rating across the temperature span.

Frequently asked questions

What cable types are compatible with the 082-67 connector?

The 082-67 is designed for RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, and 393 cable groups. The kit includes a braid clamp and cable clamp sized for these jacket diameters.

Is the 082-67 connector threaded or bayonet?

Threaded. The fastening type is threaded, with a bulkhead front-side nut for panel mounting.
