Amphenol 083-1SP

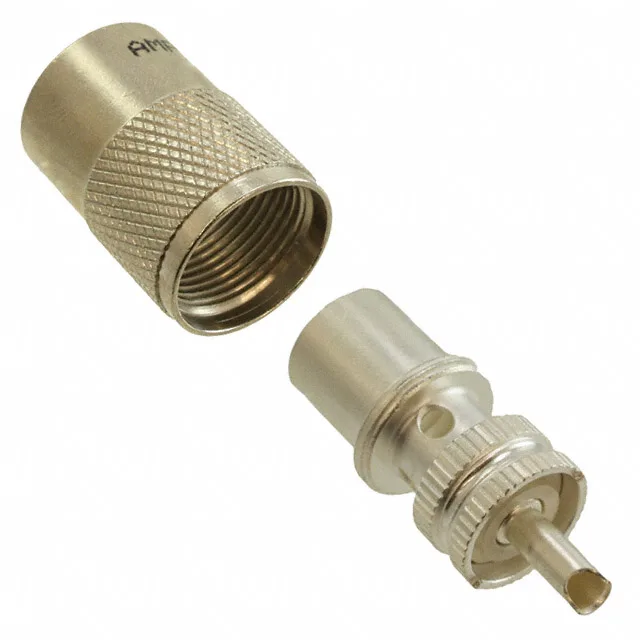

Amphenol 083-1SP PL-259 UHF Plug, 50 Ohm, 300 MHz, RG-8

MPN 083-1SP
Active

Amphenol 83-Series, UHF connector, PL-259 plug, male pin, 50 Ohm, 300 MHz, 500 V, solder cup, free-hanging, silver body, Bulk.

$13.4400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

083-1SP key specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeThreaded
Voltage rating500 V
Frequency - max300 MHz
Cable groupRG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
Operating temperature-65°C~165°C
Body materialBrass
Housing colorSilver
Dielectric materialLiquid Crystal Polymer (LCP)
Center contact materialBrass
PackageBulk

All specifications

083-1SP additional specifications
ParameterValue
FeaturesPL-259
Impedance50Ohm
Body finishSilver
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingSilver

Product details

PL-259 UHF Plug — 50 Ohm, 300 MHz Ceiling, Fits RG-8 Cable Group

The 083-1SP: It is the classic RF interconnect for the HF and low-VHF bands, rated to 300 MHz maximum frequency. The solder cup termination and free-hanging in-line mounting make it a field-installable choice for coaxial cable assemblies using RG-8, RG-8A, RG-9, RG-9A, RG-9B, RG-87, RG-213, RG-214, RG-225, RG-302, or RG-393.

50 Ohm Impedance, 300 MHz — The UHF Band Limit

The 083-1SP carries a 50 Ohm nominal impedance, matching the standard for most RF test equipment, transceivers, and antenna systems. The 300 MHz maximum frequency defines its application envelope — this is a UHF connector, not a VHF or microwave part. Compare with the Amphenol 082-4425-1003, an N-type plug rated to 11 GHz, or the 031-2367-RFX, a TNC plug also rated to 11 GHz. The PL-259's frequency ceiling is a deliberate trade-off: the threaded coupling and robust centre pin deliver a reliable mechanical mate at a lower cost per connection, but the interface geometry limits its use to below 300 MHz. For a 2.4 GHz Wi-Fi antenna feed or a 6 GHz instrumentation link, this is the wrong connector.

Cable Fit — RG-8 and Its Family

The 083-1SP is listed for cable group RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393. These are all nominally 50 Ohm coax with a similar dielectric diameter — typically around 0.285 inches for RG-8 and RG-213. No crimp tool is needed, which simplifies field installation but makes consistent shield termination dependent on the installer's technique. The silver-plated brass centre contact and body resist corrosion in outdoor or marine environments, but the silver finish will tarnish over time — it does not affect RF performance.
