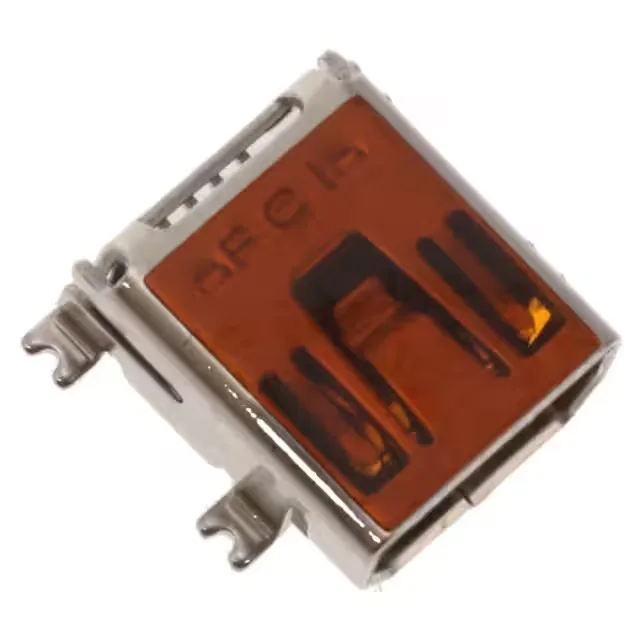

10033527-N3212MLF — Amphenol product photo
Amphenol

Amphenol 10033527-N3212MLF USB mini AB Receptacle

MPN10033527-N3212MLF
Active

Amphenol USB 2.0 mini AB receptacle, 5 contacts, 1 A per contact, 30 V, SMT right-angle, gold-plated contacts, shielded, 5000 mating cycles, UL94 V-0.

$0.7800Ref. price · indicative, final on quote
10033527-N3212MLF datasheet
StockIn Stock (20)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10033527-N3212MLF Technical Specifications
ParameterValue
Mounting typeSurface Mount, Right Angle
Connector typeUSB - mini AB
Voltage - rated30V
Current rating1A per Contact
Positions5
Mounting featureHorizontal
Operating temperature-25°C~85°C
Insulation colorBlack
Shell (Shielding material)Copper Alloy
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesBoard Guide, Solder Retention
ShieldingShielded
TerminationSolder
Mating cycles5000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB mini AB Receptacle for Dual-Plug Compatibility

The Amphenol 10033527-N3212MLF is a USB 2.0 mini AB receptacle with 5 contacts, rated 1 A per contact at 30 V. It accepts both mini A and mini B plugs — the defining feature of the mini AB interface — making it the correct mating half for devices that support either plug orientation. Gold contact finish and a 5000-cycle mating life put this above typical USB receptacles, which commonly rate 1500 to 3000 cycles.

It is available in Tape & Reel and Cut Tape packaging, which covers both reel-fed pick-and-place and small-quantity prototyping.

Frequently asked questions

What is the difference between USB mini AB and mini B?

A mini AB receptacle accepts both mini A and mini B plugs, while a mini B receptacle accepts only mini B plugs. The 10033527-N3212MLF is a mini AB receptacle; the 10033526-N3212MLF is a mini B receptacle. Both share the same 5 contacts, 1 A rating, and 5000-cycle life, so the choice depends on whether your system needs to accept mini A plugs.

What is the mating cycle rating for 10033527-N3212MLF?

The 10033527-N3212MLF is rated for 5000 mating cycles, supported by gold-plated contacts. This is well above the typical USB receptacle rating and suits applications requiring frequent connect/disconnect, such as test equipment or field-service devices.
