200-Position DDR2 SODIMM Socket with 30° Angle Mount

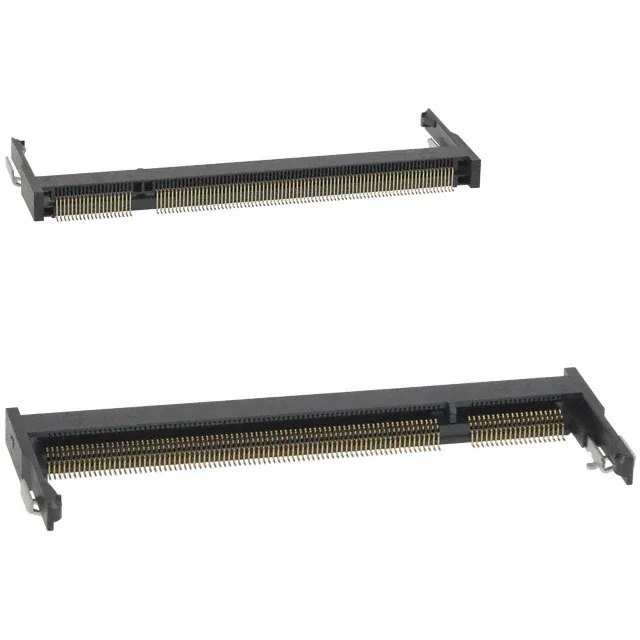

The 10033853-052FSLF is a 200-position SODIMM socket from Amphenol ICC (FCI), designed specifically for DDR2 SDRAM memory modules. The 200-position layout matches the standard DDR2 SO-DIMM interface, so it accepts 200-pin DDR2 memory cards. The socket mounts at a 30° angle to the PCB, which is the typical orientation for low-profile memory slots in laptops and embedded systems. Contacts are finished with gold flash over the base metal — sufficient for the moderate mating cycle count of a memory slot, where the module is inserted once during assembly and rarely reseated in the field.
DDR2 Memory Compatibility and Board Layout
This socket is specified for DDR2 SDRAM, which means it follows the JEDEC standard for 200-pin SO-DIMM modules. The 30° angle mounting keeps the memory module tilted relative to the board, saving vertical clearance in tight enclosures. The surface-mount footprint requires a reflow soldering profile compatible with the gold flash contacts — no special plating beyond standard SMT process. Standards reference MO-274, which is the JEDEC outline for 200-pin DDR2 SO-DIMM sockets. This ensures the socket's mechanical dimensions match the memory module card edge.
