200-Pin DDR2 SODIMM Socket for Memory Modules

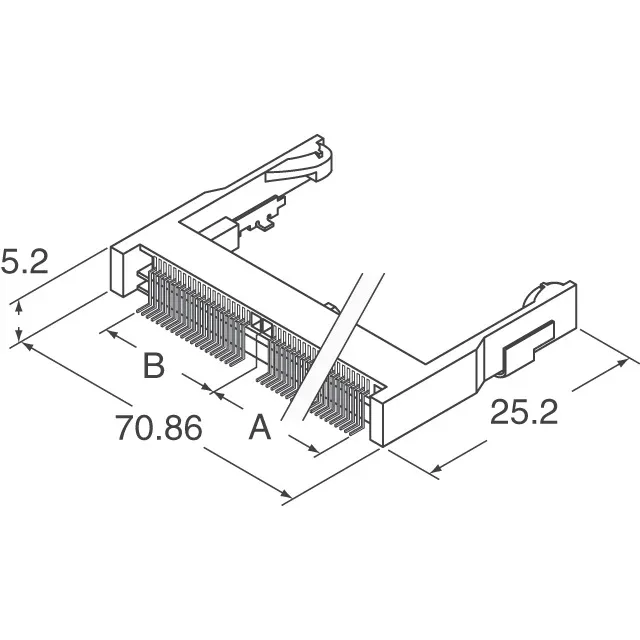

The 10033853-452FB is a 200-position SODIMM socket from Amphenol ICC (FCI), designed specifically for DDR2 SDRAM memory modules. The 200-pin count matches the JEDEC DDR2 standard — a DDR3 module has 204 pins and will not seat in this socket. The socket uses a surface-mount, 30° angle mounting orientation. Integrated board guides and latches are included. The guides align the module during insertion; the latches lock it in place, preventing the memory from backing out under vibration or during handling.
Contact Finish and Standards Compliance
Contact finish is gold flash over the mating area. Gold flash provides a corrosion-resistant interface for the moderate mating-cycle life typical of a memory socket — the module is inserted once and stays until a field upgrade. The socket conforms to MO-274, the JEDEC standard outline for DDR2 SODIMM sockets. This ensures the footprint and keying match the industry-standard memory module.
