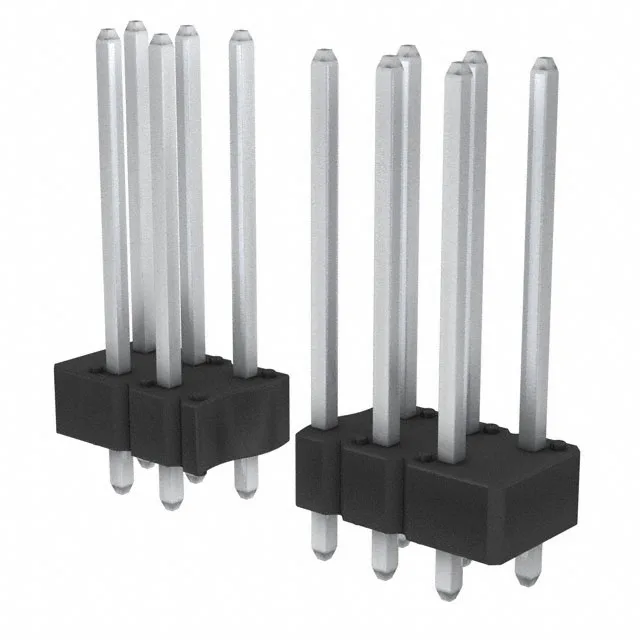

Amphenol ICC (FCI) BERGSTIK® II header, order code 10050682-423HT, 23 positions, dual row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole, solder termination.
Amphenol ICC (FCI) 10050682-423HT BERGSTIK II Header, 23 Pos
MPN10050682-423HT
Obsolete
Amphenol ICC (FCI) BERGSTIK® II header, order code 10050682-423HT, 23 positions, dual row, 0.100" (2.54mm) pitch, tin-plated mating contacts, through-hole, solder termination.
$1.0200Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 23 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.082\" (2.08mm) |
| Overall contact length | 0.661\" (16.79mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.480\" (12.19mm) |
| Contact finish thickness - mating | 120.0µin (3.05µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 10050682-423HT in the BERGSTIK II family?
No pin-compatible alternative is documented on record from Amphenol ICC (FCI). The 10050682-423HT is a 23-position, dual-row, 0.100" pitch unshrouded header; any replacement would require a board spin and validation.
