Amphenol 10051922-2810ELF

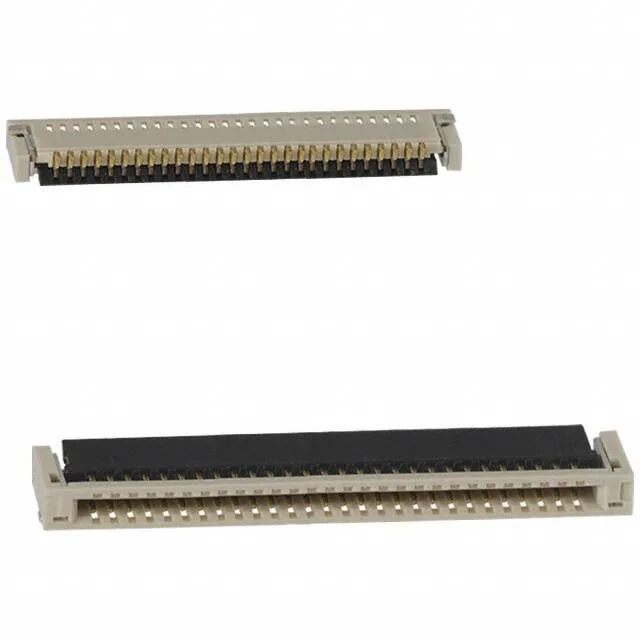

10051922-2810ELF – Amphenol ICC (FCI) VLL 28-Pos 0.50mm FPC

MPN 10051922-2810ELF
Active

Amphenol ICC (FCI) VLL series, 28-position, 0.50mm pitch, bottom-contact ZIF FPC connector, surface-mount right-angle, gold-plated contacts, 0.5A rating, UL94 V-0 housing.

$0.4508 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
SeriesVLL
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

10051922-2810ELF key specifications
ParameterValue
SeriesVLL
MountingSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~85°C
Housing colorNatural
Actuator colorBlack
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled

All specifications

10051922-2810ELF additional specifications
ParameterValue
Actuator materialPolyamide (PA9T), Nylon 9T, Glass Filled
Height above board0.051\" (1.30mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions28
Contact finish thickness2.00µin (0.051µm)

Product details

28-Position 0.50mm Pitch FPC Connector – Bottom Contact ZIF

It uses a bottom-contact, zero-insertion-force (ZIF) design with a slide lock actuator, accepting 0.30mm-thick FPC cables. Rated at 0.5A per contact with a 50V voltage limit, the connector is intended for low-power signal and control lines in compact electronics. The gold-plated contacts (2.00µin gold over copper alloy) provide reliable signal transfer for the rated 20 mating cycles – typical for a ZIF connector in set-and-forget applications like displays, touch panels, or sensor modules.

We source this connector through independent distribution channels. Current pricing and stock availability are confirmed at the time of your RFQ – submit a request against your BOM quantity for a firm quote.

This connector mates with a 0.50mm-pitch FPC cable of 0.30mm thickness. The ZIF mechanism requires the actuator to be lifted before inserting the FPC, then closed to clamp the contacts. The slide lock holds the actuator in place after mating. Termination is solder – the surface-mount pads are soldered to the PCB.

MPN
10051922-2810ELF
