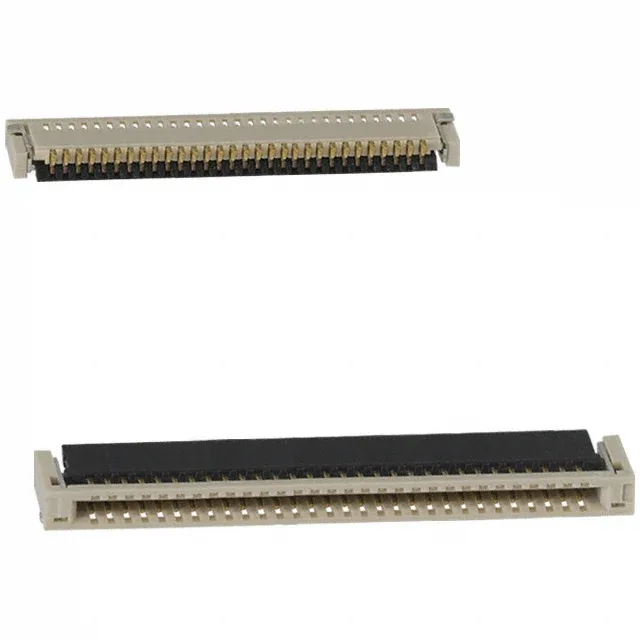

10051922-3010ELF — Amphenol product photo
Amphenol

10051922-3010ELF FPC Connector, 30 Pos, 0.50mm, ZIF

MPN10051922-3010ELF
Active

Amphenol ICC (FCI) VLL series FPC connector, 30 positions, 0.50mm pitch, right-angle SMT, ZIF with slide lock, gold-plated bottom contacts, 0.5 A, 50 V, UL94 V-0.

$1.1800Ref. price · indicative, final on quote
10051922-3010ELF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10051922-3010ELF Technical Specifications
ParameterValue
SeriesVLL
Mounting typeSurface Mount, Right Angle
Cable end typeStraight
Flat flex typeFPC
Connector (Contact type)Contacts, Bottom
Voltage rating50V
Current rating0.5A
Operating temperature-55°C~85°C
Housing colorNatural
Actuator colorBlack
Contact materialCopper Alloy
Housing materialLiquid Crystal Polymer (LCP), Glass Filled
Actuator materialPolyamide (PA9T), Nylon 9T, Glass Filled
Height above board0.051\" (1.30mm)
Material flammability ratingUL94 V-0
Pitch0.020\" (0.50mm)
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention, Zero Insertion Force (ZIF)
TerminationSolder
Mating cycles20
Contact finishGold
Locking featureSlide Lock
FFC, FCB thickness0.30mm
Positions30
Contact finish thickness2.00µin (0.051µm)

Product details

30-Position FPC Connector with ZIF Slide Lock

The 10051922-3010ELF is a 30-position FPC connector from Amphenol ICC (FCI)'s VLL series, on 0.50 mm pitch. It uses a zero-insertion-force (ZIF) slide-lock actuator to secure the FPC without damaging the pads — the slide lock pulls the contact beams onto the cable, not the other way around. The housing is natural LCP, glass-filled, rated UL94 V-0. The 20-cycle mating life reflects a single-install or infrequent-service design — not for repeated disconnect duty.

Frequently asked questions

Is 10051922-3010ELF RoHS compliant?

Yes, it is ROHS3 compliant.

Does 10051922-3010ELF have a slide lock mechanism?

Yes, it uses a slide lock for ZIF actuation — the actuator slides to clamp the FPC without insertion force.

What is the mating cycle life of 10051922-3010ELF?

20 mating cycles — this is a low-cycle connector intended for one-time assembly or infrequent service, not repeated disconnect/reconnect.

What is the equivalent part to 10051922-3010ELF?

The 10051922-3010EHLF is functionally identical except for a black housing colour — same pitch, positions, current, and ZIF slide lock. The natural-housing 3010ELF is the standard variant.
