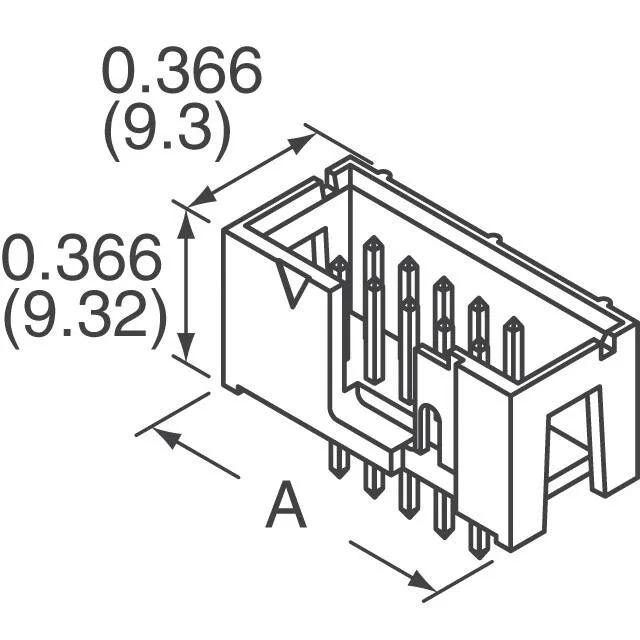

10056844-110LF — Amphenol product photo
Amphenol

10056844-110LF Amphenol ICC (FCI) Quickie™ Header 10-Pos

MPN10056844-110LF
Active

Amphenol ICC (FCI) Quickie™ series, 10056844-110LF — 10-position, dual-row, 0.100" (2.54mm) pitch, through-hole, shrouded 4-wall header, male pin, gold GXT™ mating finish, tin post, UL94 V-0, tube package.

$1.9900Ref. price · indicative, final on quote
10056844-110LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10056844-110LF Technical Specifications
ParameterValue
SeriesQuickie™
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typePush-Pull
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.366\" (9.30mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions10
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.079\" (2.00mm)
Contact finish - matingGold, GXT™
Contact length - mating0.236\" (6.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

10-Position Dual-Row Header with Gold GXT™ Contacts

A keying slot ensures correct orientation with the mating receptacle, reducing mis-mate risk on the line.

Through-Hole Termination and Housing Ratings

The insulation height of 0.366" (9.30mm) gives clearance for mating receptacle housings. The insulation color is black, consistent with the Quickie™ series visual identity.

For a higher-density BOM line, the sibling 10056844-120ALF offers 20 positions with the same pitch, plating, and shrouding — a direct drop-in for a 2x10 layout if the board has room.

Frequently asked questions

What is the closest functional second-source for 10056844-110LF?

For a 10-position match, the 71918-010LF is a gray-housing variant with a mounting flange and phosphor bronze contacts.

What is the pinout of 10056844-110LF?

The 10056844-110LF is a dual-row header with all 10 positions loaded. The pinout follows standard 2.54mm grid spacing — row A on one side, row B on the other, with 0.100" (2.54mm) between rows. The keying slot ensures correct orientation with the mating receptacle.
