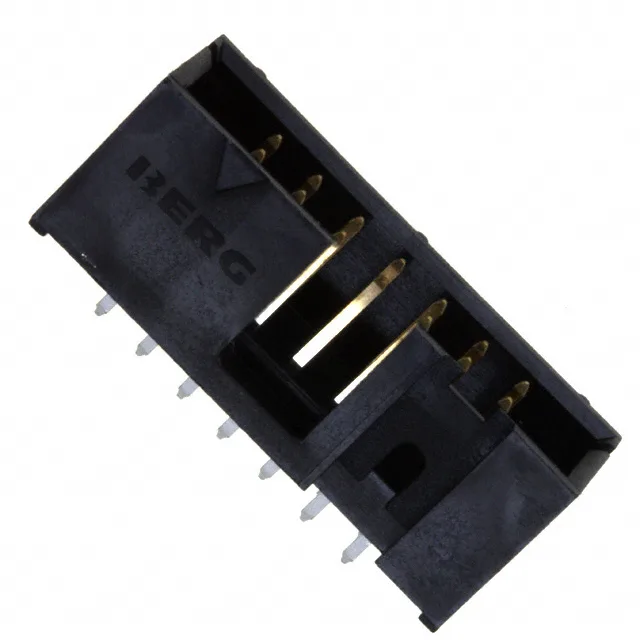

Amphenol ICC (FCI) Quickie header, order code 10056844-114ALF, 14 positions, dual row, 0.100" (2.54 mm) pitch, gold GXT mating contacts, through-hole, solder termination, shrouded 4-wall, UL94 V-0.
Amphenol ICC Quickie 10056844-114ALF Header, 14-Pos 2.54mm
MPN10056844-114ALF
Active
Amphenol ICC (FCI) Quickie header, order code 10056844-114ALF, 14 positions, dual row, 0.100" (2.54 mm) pitch, gold GXT mating contacts, through-hole, solder termination, shrouded 4-wall, UL94 V-0.
$1.5642Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.366\" (9.30mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot, Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.079\" (2.00mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 10056844-114ALF in the Quickie series?
No same-series peer with a different position count is listed in the available data. The 14-position 10056844-114ALF is the only member of the Quickie series with confirmed specifications in this record.
What compliance documentation does Amphenol ICC (FCI) provide for 10056844-114ALF?
No RoHS or REACH compliance statements are recorded in the available data.
