Board-to-board or cable header with 4-wall shroud

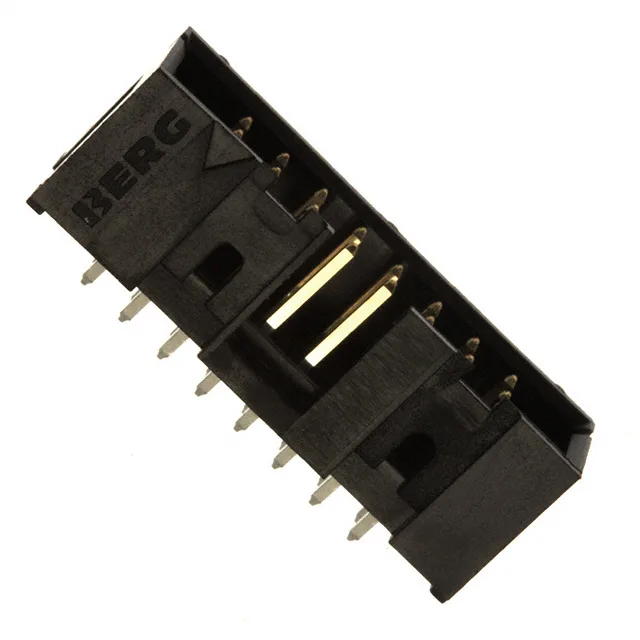

The 10056844-116ALF is the 16-circuit member of Amphenol ICC's Quickie shrouded header line, built for board-to-board or cable duty. It carries gold GXT™ mating contacts with 30.0µin (0.76µm) thickness, sits in a 4-wall shroud, and terminates through-hole with solder.
Quickie series layout and keying
The dual-row layout uses a 0.100" (2.54mm) pitch and row spacing, both shared across the Quickie series — the 16 positions are fully loaded with square male pins. A keying slot in the shroud prevents mis-mating with non-keyed receptacles; the UL94 V-0 thermoplastic housing holds the pin grid in a 0.366" (9.30mm) insulation height.
