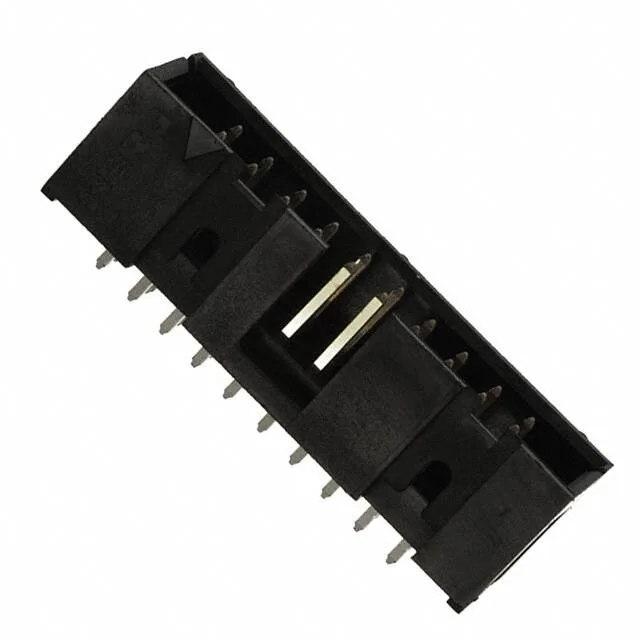

Amphenol ICC (FCI) Quickie™ series, 10056844-120ALF, 20-position dual-row shrouded header, 0.100" (2.54mm) pitch, through-hole solder termination, gold GXT™ mating finish, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.366\" (9.30mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Keying Slot, Pick and Place |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.079\" (2.00mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 10056844-120ALF: The post (solder tail) is tin-plated at 78.7 µinch (2.00 µm), which is standard for solder joint compatibility.
The Keying Slot and Pick and Place features indicate it is designed for automated assembly — the pick-and-place pad allows vacuum pickup, and the keying slot prevents mis-mating in multi-connector layouts.
The shrouded 4-wall design means the receptacle housing must fit inside the shroud — typical mates are Amphenol ICC Quickie™ IDC sockets or 3M D-sub-style ribbon sockets with the same pitch.
