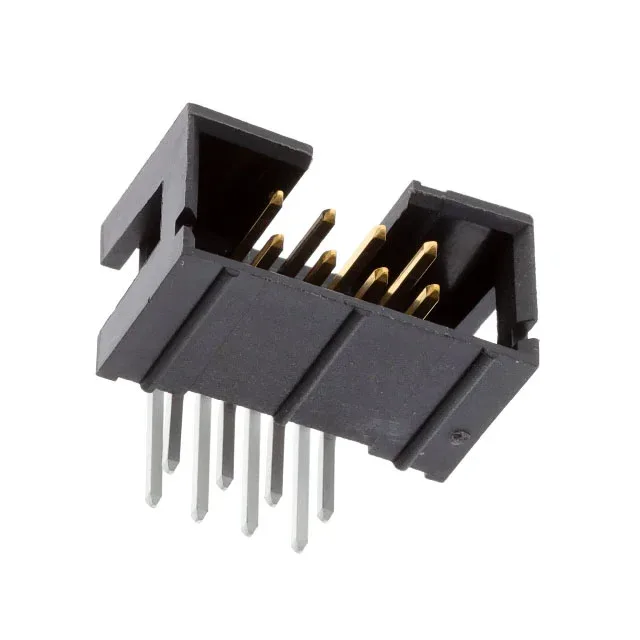

Amphenol ICC (FCI) Quickie™ series, 8-position dual-row header, 0.100" (2.54 mm) pitch, right-angle through-hole, shrouded 4-wall with detent lock, 30 µinch GXT™ gold on mating contacts, RoHS.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 8 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.079\" (2.00mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 10056845-108LF: Through-hole solder tails provide a mechanical anchor that resists cable strain better than an SMT part of the same footprint.
Both share 0.100" pitch, 30 µinch GXT™ gold mating contacts, and UL94 V-0 housing.
The detent lock engages with the mating housing's latch feature.
