10056845-114LF Quickie 14-Position 0.100" Header, Right Angle
MPN10056845-114LF
Active

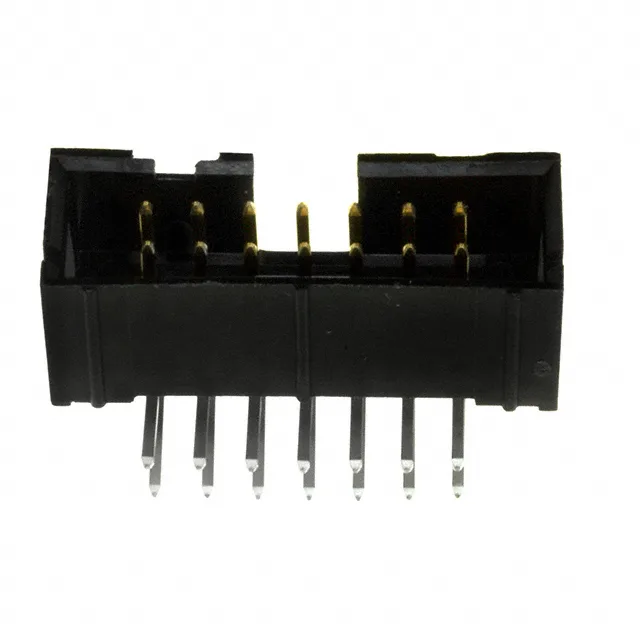

Amphenol FCI Quickie 10056845-114LF, 14-position, dual-row, 0.100" (2.54 mm) pitch, right-angle through-hole board-to-cable header, shrouded 4-wall with detent lock, gold GXT contact plating on mating side, tin on post side, UL94 V-0 thermoplastic, 0.362" insulation height.
$1.9100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.079\" (2.00mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Frequently asked questions
What is the 10056845-114LF's listed style?
The listed style is Board to Cable/Wire — this is a board-mount header intended to receive a cable-side Quickie receptacle housing in a harness assembly.
