Shrouded 4-wall header with detent lock
The 10056845-126LF: Mating contacts are gold GXT™ plated to 30.0 µin, with tin-plated solder tails at 78.7 µin; the right-angle through-hole termination suits edge-mount board layouts.
Amphenol ICC Quickie 10056845-126LF Header, 26-Pos 2.54mm
MPN10056845-126LF
Active

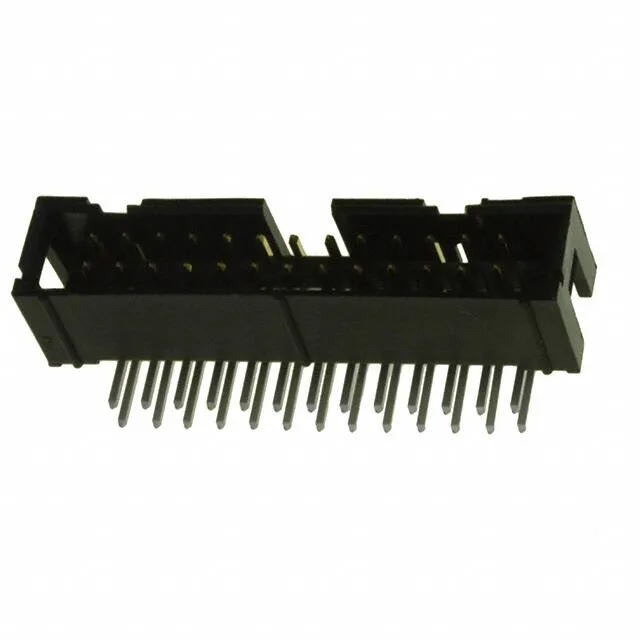

Amphenol ICC (FCI) Quickie header, order code 10056845-126LF, 26 positions, dual row, 0.100" (2.54 mm) pitch, gold GXT mating contacts (30.0 µin), right-angle through-hole, solder termination, UL94 V-0 housing.
$3.1300Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 26 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.079\" (2.00mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation does Amphenol ICC (FCI) provide for the 10056845-126LF?
RoHS and REACH compliance documentation is available from the manufacturer upon request.
