Amphenol FCI Quickie™ header, order code 10056845-134LF, 34 positions, dual row, 0.100" (2.54mm) pitch, gold GXT™ mating contacts, through-hole right-angle, solder termination.
10056845-134LF Quickie Header, 34 Pos, 2.54mm, Gold GXT
MPN10056845-134LF
Active
Amphenol FCI Quickie™ header, order code 10056845-134LF, 34 positions, dual row, 0.100" (2.54mm) pitch, gold GXT™ mating contacts, through-hole right-angle, solder termination.
$2.2717Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Copper Alloy |
| Insulation color | Black |

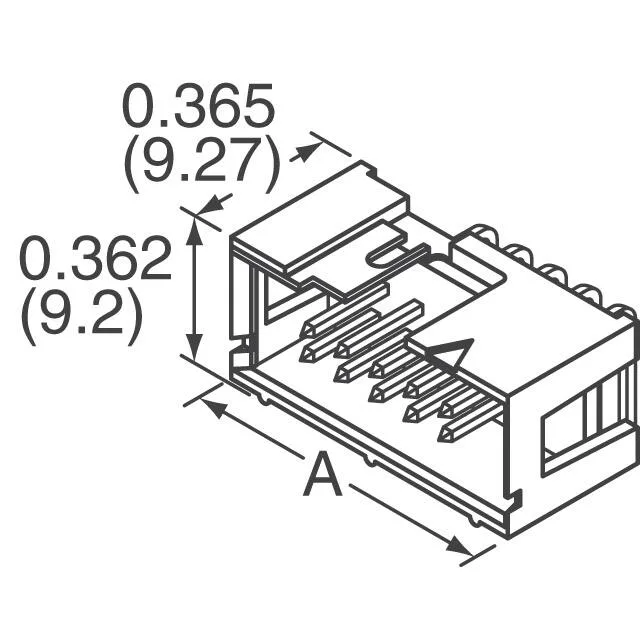

| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
All specifications
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.079\" (2.00mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.236\" (6.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to 10056845-134LF in the Quickie series?
The Quickie 10056845 series uses the same 0.100" (2.54mm) pitch, dual-row spacing, and gold GXT™ plating across all position counts. A 30- or 40-position sibling shares the footprint but differs in circuit count — select the position count that matches the target circuit count.
What compliance documentation does Amphenol FCI provide for 10056845-134LF?
RoHS and REACH compliance documentation is available from the manufacturer upon request.
