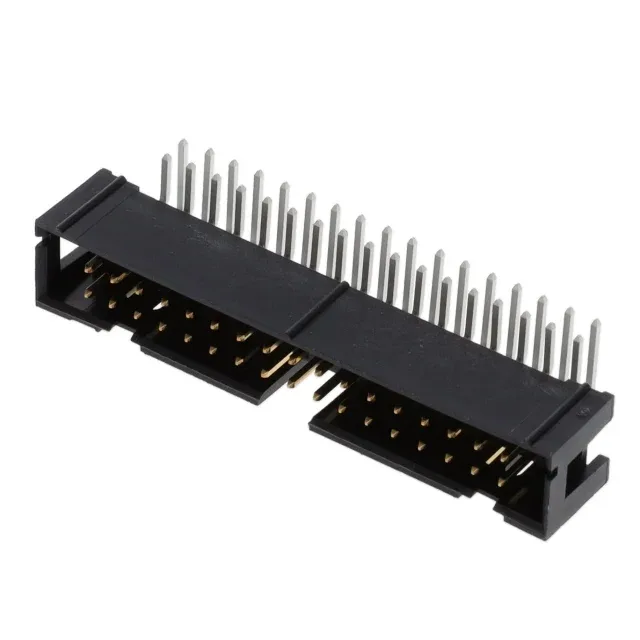

Amphenol ICC (FCI) Quickie™, 10056845-S34KLF, 34-position, 0.100" (2.54mm) pitch, right-angle, shrouded male pin header, through-hole solder termination, detent lock, keying slot, UL94 V-0 black thermoplastic, RoHS compliant.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Detent Lock |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.362\" (9.20mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 34 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.079\" (2.00mm) |
| Contact length - mating | 0.236\" (6.00mm) |
The 10056845-S34KLF: The keying slot ensures the mating receptacle can only be inserted in one orientation, preventing mis-wiring in multi-connector harnesses — a practical safeguard during field assembly or panel wiring.
The 0.100" pitch is a standard footprint for ribbon-cable IDC connectors, making this header a natural mate for a 34-conductor flat cable assembly.
The 10056845-S34KLF is a male pin header designed to mate with a female socket receptacle from the same Quickie™ series, typically a 34-position, 0.100" pitch IDC socket for ribbon cable. The keying slot and detent lock ensure correct orientation and retention with the matching housing.
Yes, the header includes a keying slot. It prevents the mating receptacle from being inserted in the wrong orientation, which is critical in multi-connector harnesses where a mis-mate could cause a short circuit or damage the pins.
