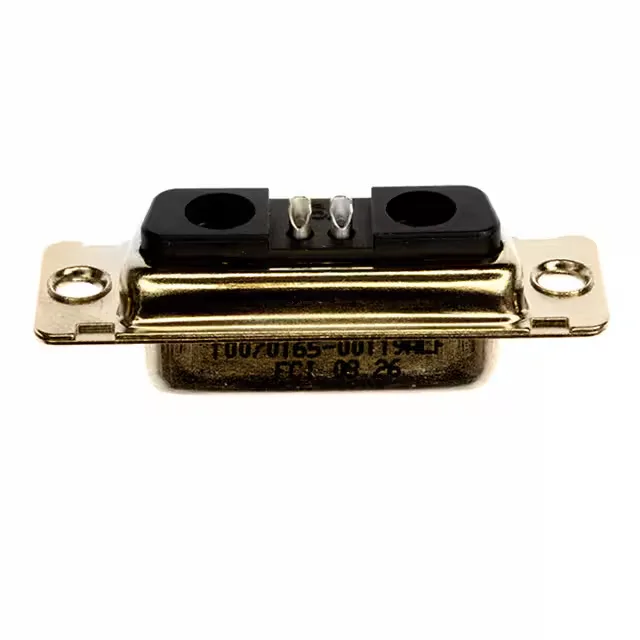

Amphenol 10070165-00119ALF
MPN10070165-00119ALF
Active
CONN D-SUB RCPT 4POS SLDR CUP
$2.53Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMicroTCA™
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MicroTCA™ |
| Type | Signal and Power (Not Included) |
| Mounting | Free Hanging (In-Line) |
| Connector type | Receptacle, Female Sockets |
| Voltage rating | 48V |
| Current rating | 0.375A, 24A |
| Wire gauge | 8 AWG, 20-24 AWG |
| Shell size, connector layout | 2 (DA, A) - 4W2 |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Copper Alloy |
| Dielectric material | Thermoplastic |
| Shell material, finish | Steel, Nickel Plated |
| Package | Box |
| Termination | Solder Cup |
| Contact finish | Gold |
| Flange feature | Housing/Shell (Unthreaded) |
| Rows | 1 |
| Positions | 4 (2 + 2 Power) |
