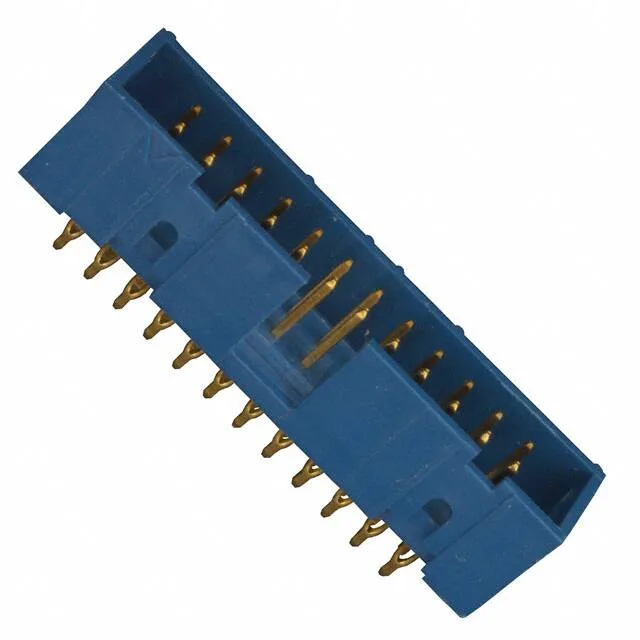

Amphenol ICC (FCI) Quickie header, order code 10073456-025LF, 24 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole, press-fit and solder termination.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |
| Insulation height | 0.365\" (9.27mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.160\" (4.06mm) |
| Overall contact length | 0.510\" (12.95mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 40.0µin (1.02µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 10073456-025LF: The 4-wall shrouded housing includes a keying slot and is rated UL94 V-0.
Termination is press-fit and solder — the 0.160" (4.06mm) post length suits through-hole boards where press-fit retention supplements the solder joint. Overall contact length is 0.510" (12.95mm).
No pin-compatible alternative is listed in the same series.
RoHS and REACH compliance documentation is available from Amphenol ICC (FCI) on request.
