Amphenol FCI Quickie™ 10073456-062LF, 50-position dual-row shrouded header, 0.100" (2.54mm) pitch, gold GXT™ mating finish, press-fit/solder termination, through-hole, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Blue |

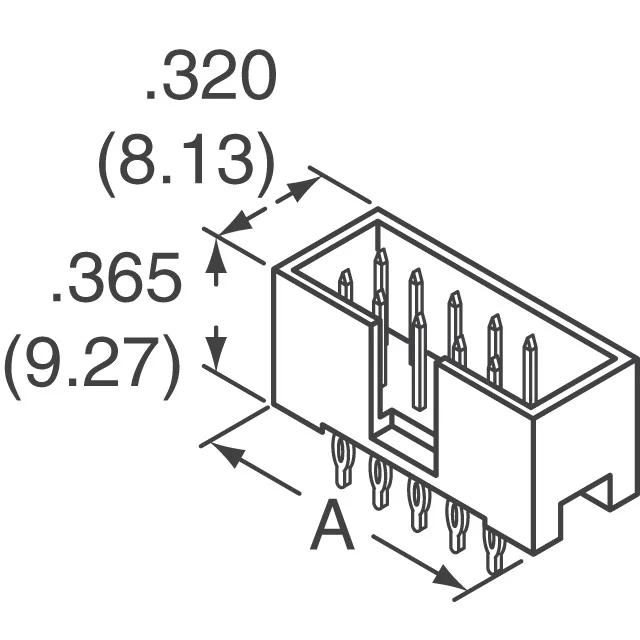

| Insulation height | 0.365\" (9.27mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board or Cable |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 50 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.160\" (4.06mm) |
| Overall contact length | 0.510\" (12.95mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 40.0µin (1.02µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Termination is dual-mode — press-fit for solderless backplane assembly, or solder for conventional through-hole wave processing.
This part is officially listed as Obsolete. No direct replacement part number is recorded in the lifecycle data.
Termination options: press-fit for plated through-holes (no solder required) or solder for wave-solder assembly. The keying slot on the shroud prevents insertion of a mismatched keyed receptacle.
The 10073456-062LF is listed as Obsolete, so it is not in active factory production.
No official replacement part number is recorded in the lifecycle data. The 50-position, 0.100" pitch, dual-row shrouded header format is a standard footprint, so a form-fit-function alternative from the same series or a compatible family may exist, but no specific cross-reference is documented. Engineers should verify pinout and mating half compatibility before substituting.
