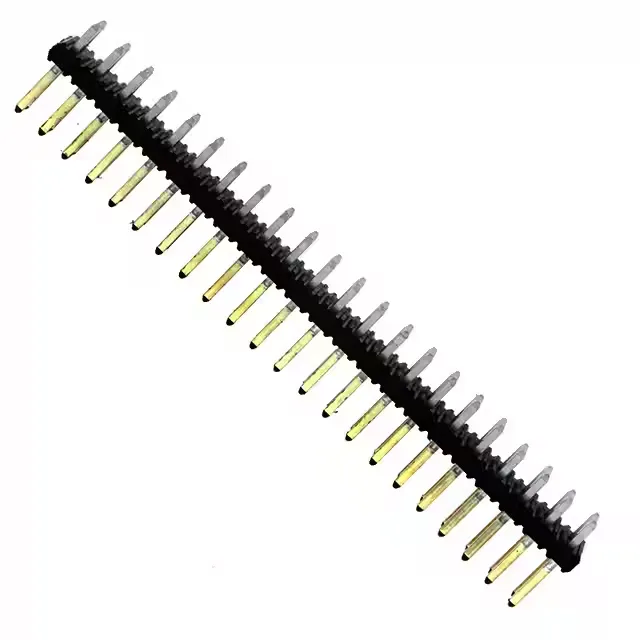

Amphenol ICC (FCI) Minitek 2.00mm header, order code 10075024-G01-22ULF, 44 positions, dual row, 2.00 mm pitch, 2 A, 200 V, gold-plated mating contacts, through-hole, solder termination.
10075024-G01-22ULF Amphenol ICC (FCI) Minitek 2.00mm Header
MPN10075024-G01-22ULF
Active
Amphenol ICC (FCI) Minitek 2.00mm header, order code 10075024-G01-22ULF, 44 positions, dual row, 2.00 mm pitch, 2 A, 200 V, gold-plated mating contacts, through-hole, solder termination.
$2.7824Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 44 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.079\" (2.00mm) |
| Overall contact length | 0.295\" (7.49mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Where can I buy 10075024-G01-22ULF and how do I get a price?
The 10075024-G01-22ULF is an active Amphenol ICC (FCI) part available through distribution. Submit an RFQ for current pricing and lead time against your BOM quantity.
What compliance documentation does Amphenol ICC (FCI) provide for 10075024-G01-22ULF (RoHS, REACH, UL, IEC)?
RoHS and REACH compliance documentation is available from Amphenol ICC (FCI) upon request.
