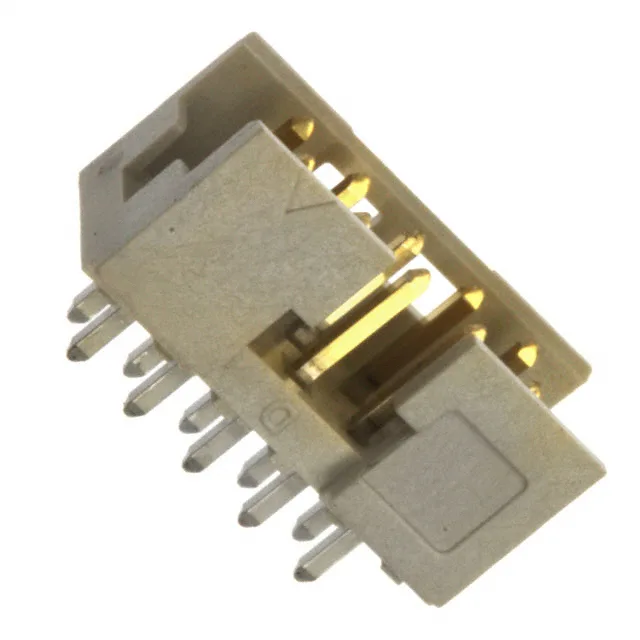

10075025-G01-10ULF — Amphenol product photo
Amphenol

10075025-G01-10ULF – Amphenol ICC Minitek 2.00mm Header

MPN10075025-G01-10ULF
Active

Amphenol ICC (FCI) Minitek® 2.00mm header, 10-circuit dual-row, through-hole, shrouded 4-wall with detent lock, gold GXT™ mating finish, rated 2 A at 200 V.

$1.3700Ref. price · indicative, final on quote
10075025-G01-10ULF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10075025-G01-10ULF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader
Fastening typeDetent Lock
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.220\" (5.60mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board or Cable
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions10
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact length - post0.079\" (2.00mm)
Contact finish - matingGold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Gold GXT™ Mating Surface and Active Lifecycle

The 10075025-G01-10ULF: The mating contacts carry 30 µinch gold over nickel (GXT™), a plating grade that sustains low contact resistance across hundreds of mating cycles — suitable for production test points or field-service connectors where the interface is cycled repeatedly. The part carries an Active lifecycle status, so there is no end-of-life risk for the BOM line.

Through-Hole Termination and Housing Features

The 0.220-inch (5.60 mm) insulation height provides clearance for board-edge routing.

Frequently asked questions

What is the pin configuration of 10075025-G01-10ULF?

It is a 10-position, dual-row header with all positions loaded.
