The 10075025-G01-26ULF is the 26-circuit member of Amphenol ICC (FCI)'s Minitek® 2.00mm header line, a shrouded board-to-board or cable interconnect. Rated 2 A at 200 V with gold GXT™ mating contacts, it mounts through-hole and terminates via solder.

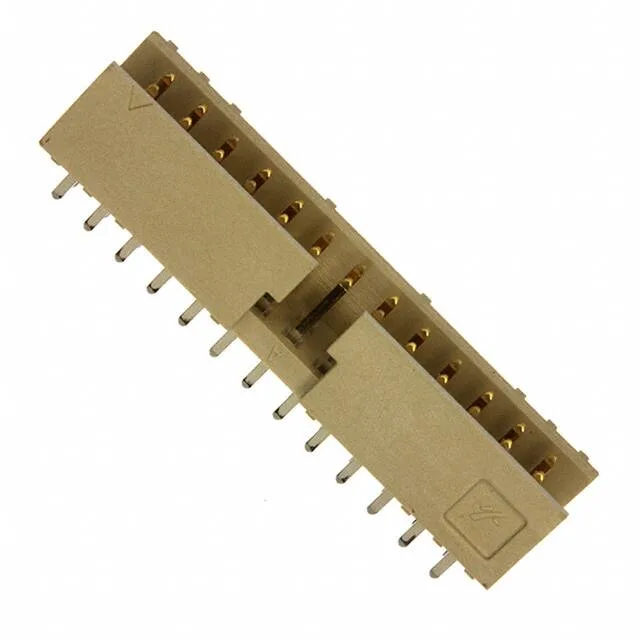

Amphenol ICC (FCI) 10075025-G01-26ULF Header, 26 Pos, 2.00mm
MPN10075025-G01-26ULF
Active
Amphenol ICC (FCI) Minitek® 2.00mm header, order code 10075025-G01-26ULF, 26 positions, dual row, 0.079" (2.00mm) pitch, 2 A, 200 V, gold GXT™ mating contacts, through-hole, solder termination.
$1.8278Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Detent Lock |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.220\" (5.60mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 26 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.079\" (2.00mm) |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
