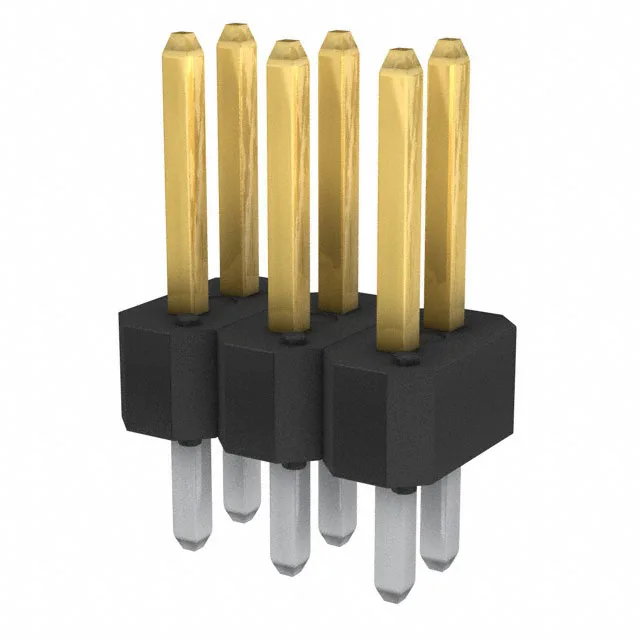

Amphenol ICC (FCI) BERGSTIK header, order code 10076801-101-06LF, 6 positions, dual row, 0.100" (2.54mm) pitch, 3A per contact, gold or GXT mating finish, through hole, solder termination, unshrouded, push-pull fastening.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.112\" (2.85mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Overall contact length | 0.440\" (11.18mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 10076801-101-06LF is the 6-circuit member of Amphenol ICC (FCI)'s BERGSTIK unshrouded breakaway header line. It carries gold or GXT mating contacts rated 3A per contact and mounts through hole with solder termination.
The listed style is Board to Board.
RoHS and REACH compliance documentation is available from the manufacturer.
