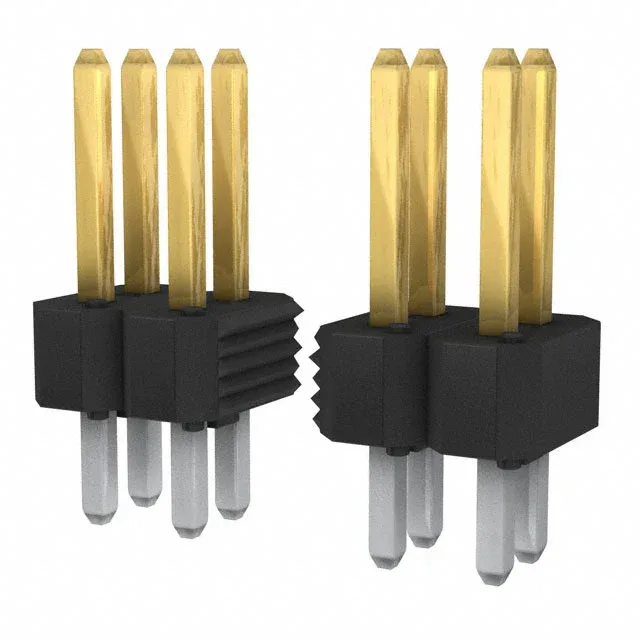

10076801-101-26LF BERGSTIK® Header, 26 Pos, 2.54mm Pitch

MPN10076801-101-26LF
Active

Amphenol ICC (FCI) BERGSTIK®, 10076801-101-26LF, Board to Board, Header Breakaway, 26 Circuits, 2 Rows, 0.100" (2.54mm) Pitch, Unshrouded, Through Hole, Solder, 3A per Contact, 30.0µin Gold Mating, Active

$2.5200Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10076801-101-26LF Technical Specifications
ParameterValue
SeriesBERGSTIK®
GenderMale Pin
Mounting typeThrough Hole
Connector typeHeader, Breakaway
Fastening typePush-Pull
Current rating3A per Contact
Operating temperature-65°C~130°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.112\" (2.85mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Board
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions26
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.098\" (2.50mm)
Overall contact length0.440\" (11.18mm)
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.230\" (5.84mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

26-Pin Dual-Row Breakaway Header — BOM Fit Check

Overall contact length is 0.440" (11.18mm), with 0.230" (5.84mm) mating length and 0.098" (2.50mm) post length — check the board thickness and mating receptacle stack height against these dimensions.

RoHS compliant per the LF suffix.

Peer Alternative — 77313-118-26LF for Bulk Packaging

The 77313-118-26LF is a near-identical BERGSTIK® header: same 26 positions, dual rows, 0.100" pitch, 30 µinch gold mating finish, and UL94 V-0 housing. The key difference is packaging — the 77313-118-26LF ships in bulk rather than bag. If your pick-and-place or kitting prefers bulk tubes, that part is the direct functional alternative.

Frequently asked questions

Can 10076801-101-26LF be used for board-to-board connections?

Yes, the listed style is Board to Board. The unshrouded header mates with a standard dual-row receptacle to create a mezzanine or parallel-board stack. The 0.230" (5.84mm) mating contact length and 0.112" (2.85mm) insulation height set the stack-height budget — verify the mating receptacle's depth and overall mated height against your board spacing.
