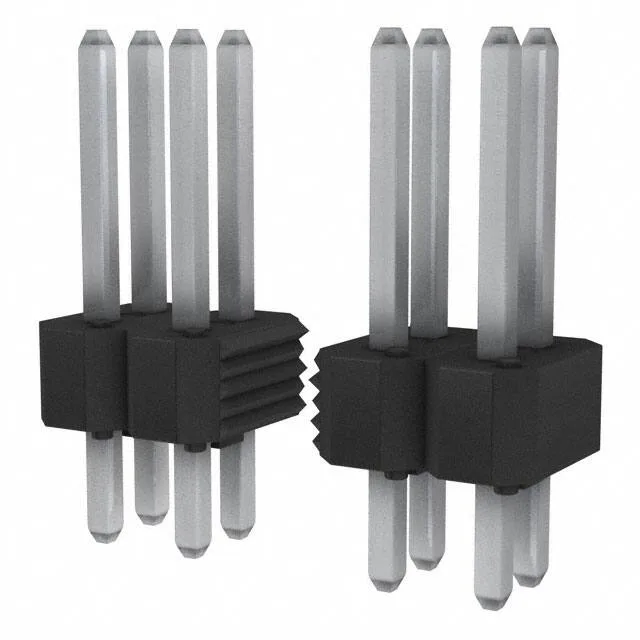

Through-hole breakaway header, 10 positions
The 10076801-402-10LF is the 10-position member of Amphenol ICC's BERGSTIK® breakaway header line, unshrouded with push-pull fastening and a UL94 V-0 thermoplastic insulator.
Amphenol ICC (FCI) BERGSTIK® header, order code 10076801-402-10LF, 10 positions, dual row, 0.100" (2.54 mm) pitch, 3 A per contact, tin-plated mating contacts, through-hole, solder termination.
$0.6514Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.112\" (2.85mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.098\" (2.50mm) |
| Overall contact length | 0.476\" (12.09mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Product details
Frequently asked questions
What is the listed style and series for this header?
The style is Board to Board and the series is BERGSTIK®.
What compliance documentation is available for 10076801-402-10LF?
RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI) upon request.
