The 10076801-404T06LF: It is a breakaway design — the full strip is loaded to all 6 positions, and the tail length is 0.118" (3.00mm) for standard through-hole soldering. Rated 3A per contact with tin-on-tin mating surfaces (78.7 µinch / 2.00µm on both pin and post).

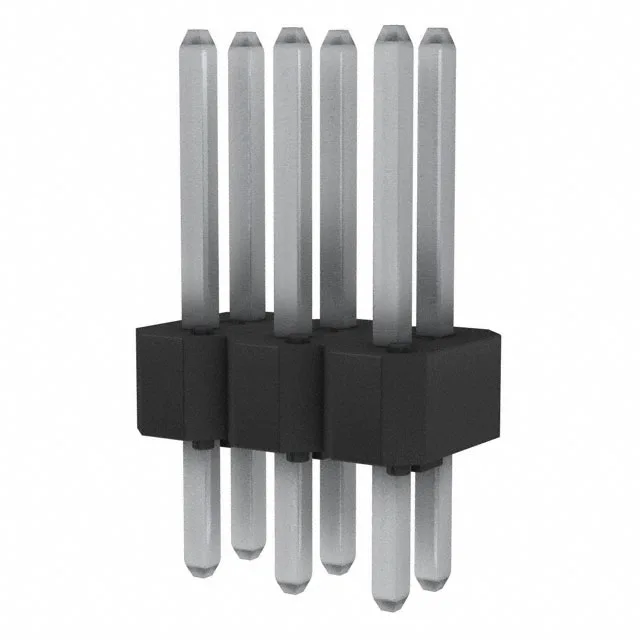

10076801-404T06LF BERGSTIK® Header, 6-Pos, 2.54mm Pitch
MPN10076801-404T06LF
Active
Amphenol ICC (FCI) BERGSTIK® series, 10076801-404T06LF is a 6-position, dual-row, unshrouded male pin header, 0.100" (2.54mm) pitch, through-hole solder termination, tin-plated contacts rated 3A per contact, UL94 V-0 thermoplastic housing, active production.
$0.5858Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.112\" (2.85mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 6 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.496\" (12.60mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Product details
Frequently asked questions
How can I order 10076801-404T06LF or check stock?
Sourced to order against your BOM quantity.
