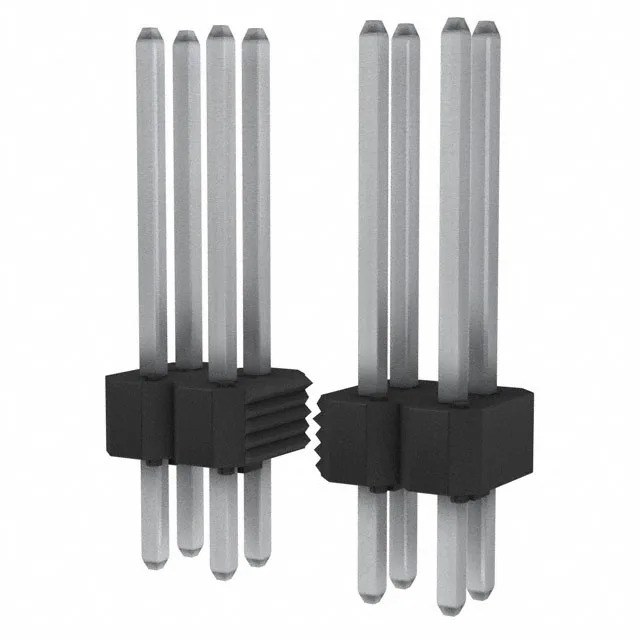

Amphenol ICC (FCI) BERGSTIK header, breakaway, order code 10076801-407A20LF, 20 positions, dual row, 0.100" (2.54mm) pitch, 3A per contact, tin-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C ~ 130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.112\" (2.85mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Tape & Reel (TR) |
| Features | Pick and Place |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.126\" (3.20mm) |
| Overall contact length | 0.651\" (16.53mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.413\" (10.50mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
Within the BERGSTIK breakaway family the 10076801-407A20LF's 20 positions are a mid-range option; the dual-row 0.100" pitch and tin plating are shared across the series, so the position count selects the circuit density on the board.
RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI) upon request.
