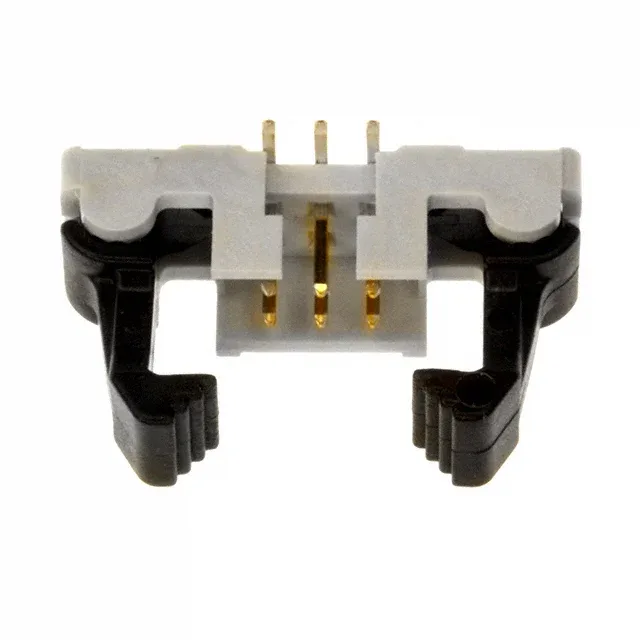

Amphenol ICC (FCI) Minitek® 2.00mm, Board to Cable/Wire, Header, Male Pin, 6 Circuits, 2 Rows, 2.00mm Pitch, SMD, Shrouded - 4 Wall, Latch Lock/Eject Hooks, 30.0µin Gold GXT™ Mating, 2A, 200V, UL94 V-0, Cream, Tube
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Voltage rating | 200V (AC/DC) |
| Current rating | 2A (AC/DC) |
| Contact material | Copper Alloy |
| Insulation color | Cream |
| Insulation height | 0.244\" (6.20mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tube |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 6 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Surface-mount termination suits automated pick-and-place assembly and reflow soldering. The 0.157 inch (4.00 mm) mating pin length provides adequate wipe for the receptacle contacts.
Surface-mount (SMD) termination — designed for reflow soldering to the PCB. The header sits flat on the board with the 4-wall shroud protecting the pins.
Yes, it is RoHS compliant per the manufacturer's listing.
Sourced to order against your BOM quantity. Availability and current pricing confirmed at quote time — submit an RFQ for this part number.
