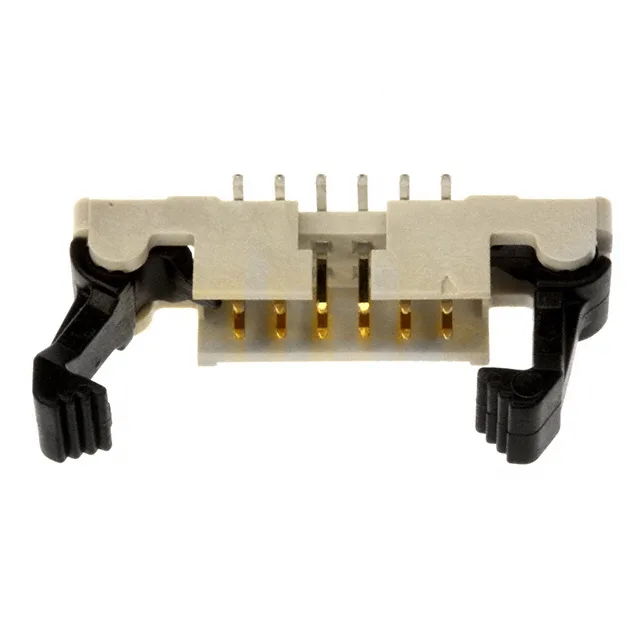

10078995-G02-12ULF — Amphenol product photo
Amphenol

Amphenol ICC Minitek 2.00mm 10078995-G02-12ULF 12-Pos Header

MPN10078995-G02-12ULF
Active

Amphenol ICC (FCI) Minitek® 2.00mm header, order code 10078995-G02-12ULF, 12 positions, dual row, 0.079" (2.00mm) pitch, 2A, 200V (AC/DC), 30.0µin gold GXT™ mating finish, shrouded 4-wall, latch lock/eject hooks, surface-mount, solder termination.

$1.0615Ref. price · indicative, final on quote
10078995-G02-12ULF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10078995-G02-12ULF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeSurface Mount
Connector typeHeader
Fastening typeLatch Lock/Eject Hooks
Voltage rating200V (AC/DC)
Current rating2A (AC/DC)
Contact materialCopper Alloy
Insulation colorCream
Insulation height0.244\" (6.20mm)
Insulation materialThermoplastic
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
FeaturesKeying Slot
ShroudingShrouded - 4 Wall
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions12
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact finish - matingGold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

12-position 2.00mm pitch shrouded header

The 10078995-G02-12ULF is the 12-circuit member of Amphenol ICC's Minitek® 2.00mm header line for board-to-cable/wire applications. It carries gold GXT™ mating contacts rated 2A per circuit at 200V (AC/DC) and mounts surface-mount with solder termination.

Keying and retention features

The 4-wall shrouded housing includes a keying slot and latch lock/eject hooks — the keying prevents mis-mating with the wrong receptacle, and the latch locks the pair together against vibration.

Frequently asked questions

What is the mating connector for 10078995-G02-12ULF?

The 10078995-G02-12ULF is a board-to-cable/wire header — it mates with a matching Minitek® 2.00mm receptacle housing that accepts crimp terminals.

Is 10078995-G02-12ULF RoHS compliant?

RoHS compliance is not listed in the available spec data for this part number.
