FCI Quickie header, order code 10080054-085LF, 20 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts (30.0µin), through-hole press-fit/solder termination, shrouded - 4 wall, latch lock/eject hooks, blue glass-filled polyester housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks, Short |
| Contact material | Phosphor Bronze Alloy |
| Insulation color | Blue |

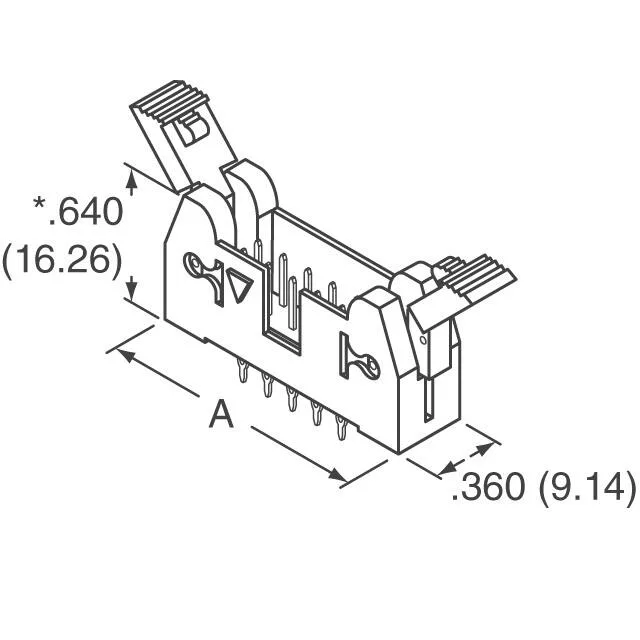

| Insulation height | 0.640\" (16.26mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 20 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.160\" (4.06mm) |
| Overall contact length | 0.629\" (15.97mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.234\" (5.94mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 10080054-085LF is the 20-circuit member of Amphenol ICC's Quickie shrouded header line, a board-to-cable/wire interconnect. It carries gold-plated mating contacts at 30.0µin thickness, mates at 0.100" (2.54mm) pitch, and terminates through-hole with a press-fit/solder tail.
The 10080054-085LF is listed as a Board to Cable/Wire style header.
