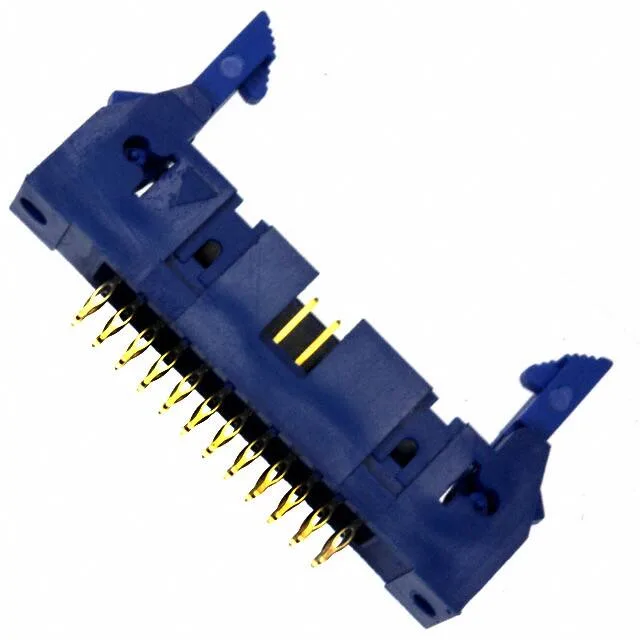

Amphenol ICC (FCI) Quickie header, order code 10080054-524LF, 24 positions, dual row, 0.100" (2.54 mm) pitch, gold-plated mating contacts, through hole, press-fit and solder termination, shrouded 4-wall, latch lock/eject hooks.
| Parameter | Value |
|---|---|
| Series | Quickie™ |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Lock/Eject Hooks |
| Contact material | Phosphor Bronze Alloy |
| Insulation color | Blue |
| Insulation height | 0.640\" (16.26mm) |
| Insulation material | Polyester, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Parameter | Value |
|---|---|
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 24 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.160\" (4.06mm) |
| Overall contact length | 0.629\" (15.97mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.234\" (5.94mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 10080054-524LF: It uses a shrouded 4-wall design with latch lock/eject hooks to secure the mating cable housing. The header mounts through hole with a press-fit and solder termination option.
RoHS and REACH compliance documentation is available from Amphenol ICC (FCI) upon request.
