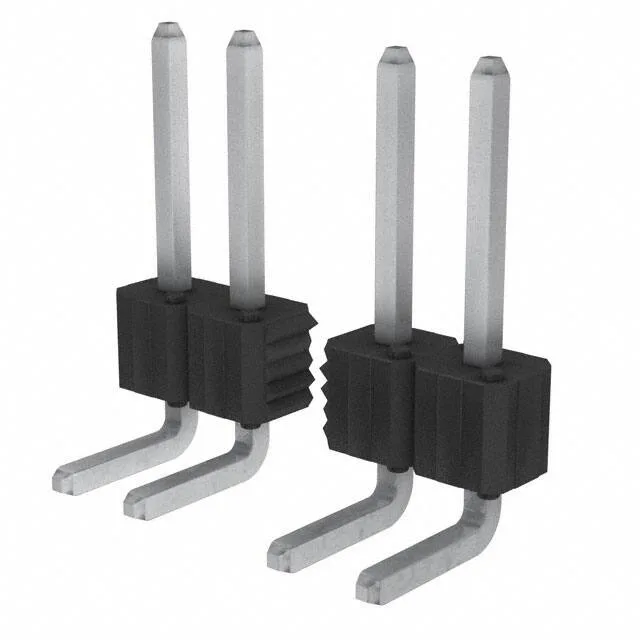

Amphenol ICC FCI BERGSTIK® header, breakaway, order code 10082201-404-10LF, 10 positions, single row, 0.100" (2.54 mm) pitch, 3 A per contact, tin-plated mating contacts, through-hole right-angle, solder termination.
10082201-404-10LF BERGSTIK Header, 10-Pos 0.100" Pitch
MPN10082201-404-10LF
Active
Amphenol ICC FCI BERGSTIK® header, breakaway, order code 10082201-404-10LF, 10 positions, single row, 0.100" (2.54 mm) pitch, 3 A per contact, tin-plated mating contacts, through-hole right-angle, solder termination.
$0.4746Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~130°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.094\" (2.40mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.266\" (6.75mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 78.7µin (2.00µm) |
