10-position unshrouded breakaway header

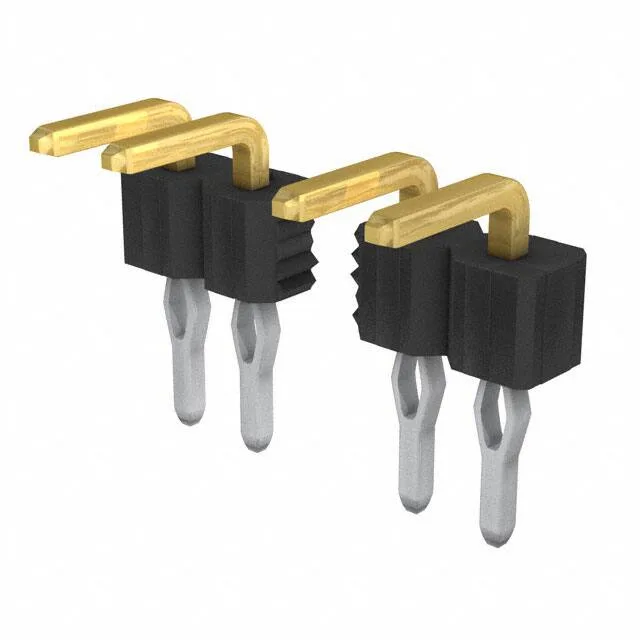

The 10087452-110HLF is the 10-position member of Amphenol ICC (FCI)'s BERGSTIK II unshrouded breakaway header line, configured as a single-row through-hole right-angle part.
Amphenol ICC (FCI) BERGSTIK II header, order code 10087452-110HLF, 10 positions, single row, 0.100" (2.54 mm) pitch, 3 A per contact, gold or GXT mating finish, through-hole right-angle, press-fit and solder termination.
$2.8277Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Gender | Male Pin |
| Mounting type | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A per Contact |
| Operating temperature | -65°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Press-Fit, Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.175\" (4.45mm) |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.138\" (3.50mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation does Amphenol ICC (FCI) provide for 10087452-110HLF?
RoHS and REACH compliance documentation is available from the manufacturer upon request.
What is the closest pin-compatible alternative to 10087452-110HLF in the BERGSTIK II series?
A 6-position or 20-position variant with the same right-angle through-hole termination and gold plating would share the same footprint per position.
