Amphenol 10090928-P264XLF
MPN10090928-P264XLF
Active

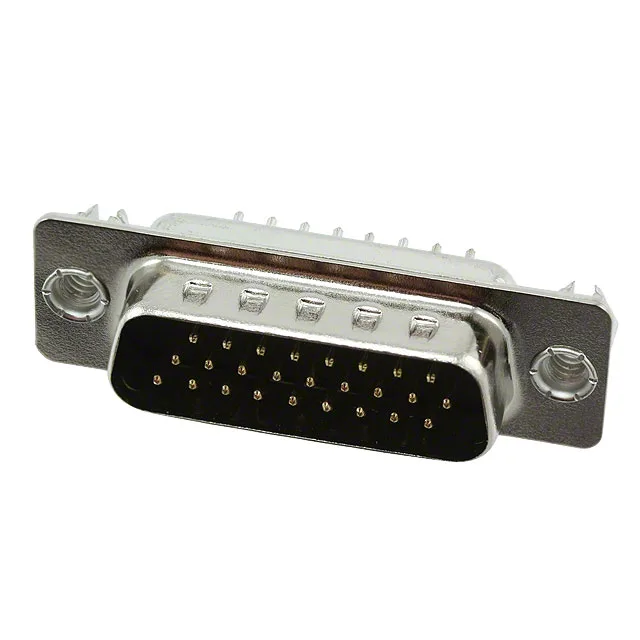

CONN D-SUB HD PLUG 26P VERT SLDR
$4.05Ref. price · indicative, final on quote
RoHSRoHS Compliant
Series10090928
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 10090928 |
| Type | Signal |
| Mounting | Through Hole |
| Connector type | D-Sub, High Density |
| Voltage rating | 250V |
| Current rating | 2.5A per Contact |
| Shell size, connector layout | 2 (DA, A) High Density |
| Operating temperature | -55°C ~ 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Dielectric material | Thermoplastic, Glass Filled |
| Shell material, finish | Steel, Nickel Plated |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Package | Tray |
| Features | Board Lock, Grounding Indents |
| Termination | Solder |
| Contact finish | Gold |
| Flange feature | Board Side (4-40) |
| Rows | 3 |
| Positions | 26 |
| Contact finish thickness | Flash |
