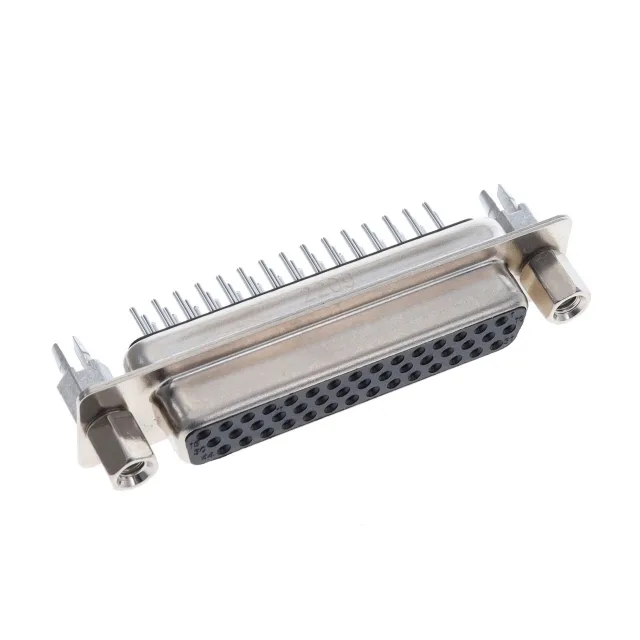

10090929-S444VLF — Amphenol product photo
Amphenol

Amphenol FCI 10090929-S444VLF D-Sub HD Receptacle, 44 Pos

MPN10090929-S444VLF
Active

Amphenol FCI 10090929 series, D-Sub High Density receptacle, 44 positions, 3 rows, Through Hole, Solder termination, Gold flash contacts, 2.5A per contact, 250V, Black, Tray.

$5.2300Ref. price · indicative, final on quote
10090929-S444VLF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10090929-S444VLF Technical Specifications
ParameterValue
Series10090929
GenderSignal
Mounting typeThrough Hole
Connector typeReceptacle, Female Sockets
Voltage rating250V
Current rating2.5A per Contact
Shell size, connector layout3 (DB, B) High Density
Operating temperature-55°C ~ 105°C
ColorBlack
Contact materialCopper Alloy
Dielectric materialThermoplastic, Glass Filled
Shell material, finishSteel, Nickel Plated
Material flammability ratingUL94 V-0
PackageTray
FeaturesBoard Lock
TerminationSolder
Contact finishGold
Flange featureBoard Side (4-40); Mating Side, Female Screwlock (4-40)
Rows3
Positions44
Contact finish thicknessFlash

Product details

High-Density D-Sub with Dual Screwlock Retention

The Amphenol FCI 10090929-S444VLF is a 44-position, 3-row D-Sub high-density receptacle in the 10090929 series. It uses the shell size 3 (DB, B) high-density layout.

Board Locks and Screwlock Hardware

This receptacle carries both board locks and a dual-side flange feature: a 4-40 threaded insert on the board side and a female 4-40 screwlock on the mating side. The mating-side screwlock is the key difference from the sibling 10090929-S444XLF, which has only the board-side thread — if your application needs the plug to fasten to the receptacle with a screw, this -VLF variant is the one.

Materials and Environment

Frequently asked questions

Does 10090929-S444VLF have board locks and screwlocks?

Yes, it has board locks for solder-joint strain relief and a dual-side flange: a 4-40 threaded insert on the board side and a female 4-40 screwlock on the mating side.
