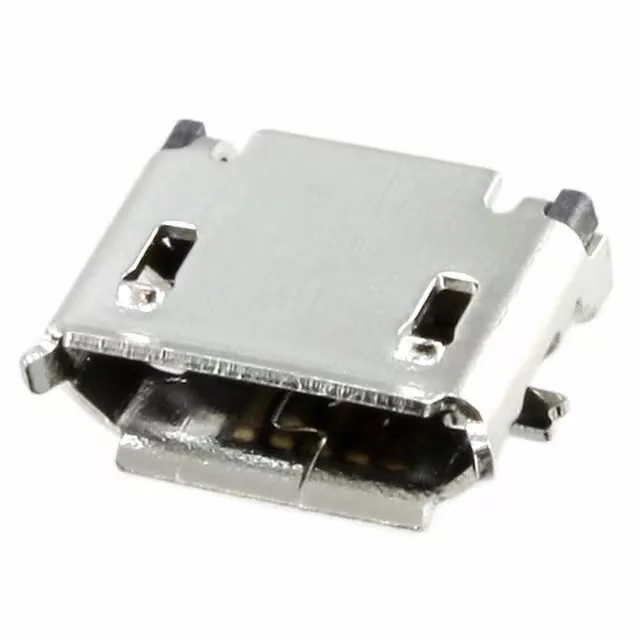

Amphenol USB 2.0 micro B receptacle, 10104110-0001LF, SMD right-angle, 5 contacts, 1.8A per contact, 100VAC, gold plating, shielded, 10000 mating cycles, UL94 V-0.
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Connector type | USB - micro B |
| Voltage - rated | 100VAC |
| Current rating | 1.8A per Contact |
| Positions | 5 |
| Mounting feature | Horizontal |
| Operating temperature | -30°C~80°C |
| Insulation color | Black |
| Shell (Shielding material) | Steel, Stainless |
| Material flammability rating | UL94 V-0 |
| Gender | Receptacle |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Solder Retention |
| Shielding | Shielded |
| Termination | Solder |
| Mating cycles | 10000 |
| Contact finish | Gold |
| Specifications | USB 2.0 |
| Number of ports | 1 |
The Amphenol 10104110-0001LF is a USB 2.0 micro B receptacle with 5 contacts, single port, rated 1.8A per contact.
The 10,000 mating cycle rating is well above the typical 5,000 cycles for a standard micro USB connector. This means the gold-plated contacts and stainless steel shield are built for repeated plug/unplug duty in applications like test jigs, field-service tools, or devices that undergo frequent firmware updates.
The 10104110-0001LF is a standard USB 2.0 micro B receptacle with 5 contacts: VBUS, D-, D+, ID, and GND. The pinout follows the USB 2.0 specification for micro B connectors.
The 10103594-0001LF, 10118192-0002LF, and 10118193-0001LF are functionally identical USB micro B receptacles with the same 5 contacts, 1.8A rating, gold plating, and 10,000 mating cycles. Any of these can serve as a direct alternative on the BOM.
