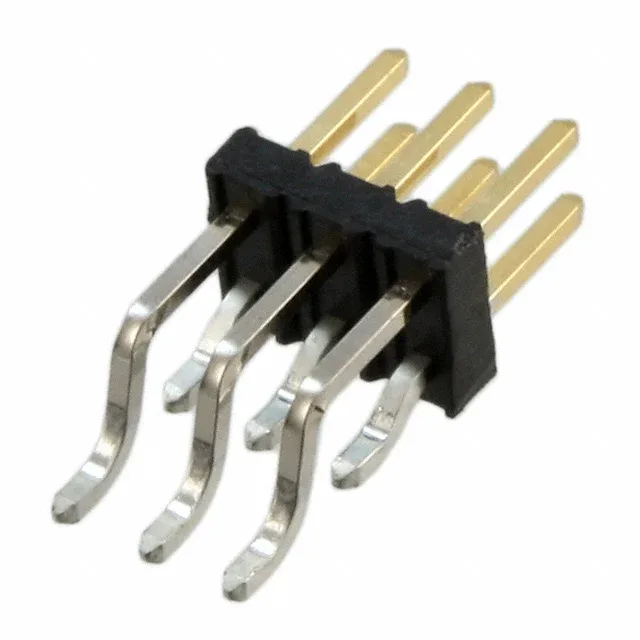

10112690-G03-03LF — Amphenol product photo
Amphenol

10112690-G03-03LF Amphenol ICC Minitek 2.00mm 6-Pin

MPN10112690-G03-03LF
Active

Amphenol ICC (FCI) Minitek® 2.00mm header, 10112690-G03-03LF, 6 positions, 2 rows, 2.00mm pitch, right-angle SMT, unshrouded male pins, 3 A, 200 V, 30 µinch gold mating finish, UL94 V-0, RoHS, Active.

$1.7800Ref. price · indicative, final on quote
10112690-G03-03LF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10112690-G03-03LF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeSurface Mount, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating200V
Current rating3A
Operating temperature-55°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.157\" (4.00mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions6
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Cable Signal Header for Tight Layouts

The 10112690-G03-03LF: A 6-position, dual-row header from the Minitek® 2.00mm series, this part is specified when you need a board-to-cable/wire interconnect with a compact 2.00mm pitch and a right-angle SMT footprint.

The 0.157" (4.00mm) mating pin length and 0.157" (4.00mm) insulation height give a low-profile mated stack — check your mating receptacle's depth to ensure full pin engagement. If your BOM needs a different circuit count, the 4-position sibling (10112690-G03-02LF) shares the same pitch, plating, and mounting — just fewer positions for a smaller harness.

Frequently asked questions

What is the pitch of 10112690-G03-03LF?

2.00mm (0.079") pitch on both the mating interface and the row spacing.

Is 10112690-G03-03LF RoHS compliant?

Yes, RoHS compliant.

What is the mounting type for 10112690-G03-03LF?

Surface mount, right-angle — the header sits parallel to the board and the pins exit at a right angle for cable routing along the board edge.

When sourcing 10112690-G03-03LF, what's the closest functional alternative?

The 4-position sibling 10112690-G03-02LF shares the same pitch, plating, mounting, and current rating — only the circuit count differs.
