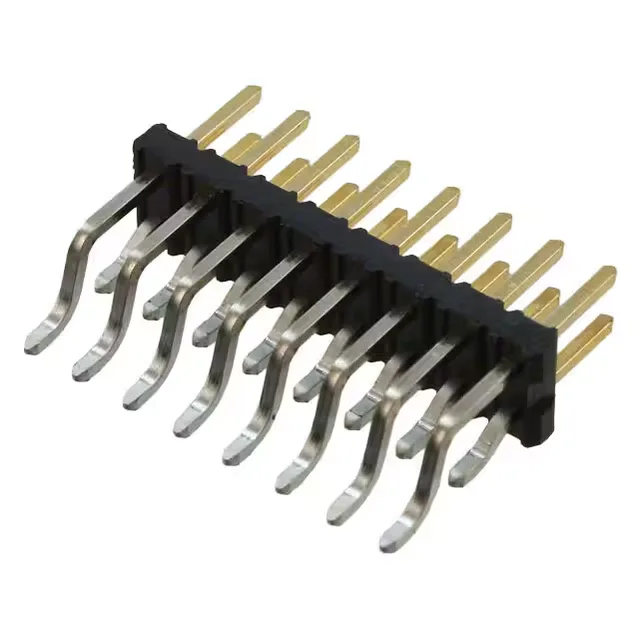

Amphenol ICC (FCI) Minitek® 2.00mm unshrouded header, 16 positions, 2 rows, surface-mount right-angle, 3 A, 200 V, 30 µinch gold on mating contact, UL94 V-0 housing.
| Parameter | Value |
|---|---|
| Series | Minitek® 2.00mm |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 200V |
| Current rating | 3A |
| Operating temperature | -55°C~125°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.157\" (4.00mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tube |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold or Gold, GXT™ |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - post | 78.7µin (2.00µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 10112690-G03-08ULF: Right-angle SMD orientation puts the pin tips parallel to the board surface, so the mated cable exits sideways — useful when the z-height above the PCB is under 4.00 mm.
The square male pin, 0.157" mating length, gives enough wipe for the receptacle contact to self-clean on insertion.
2.00 mm pitch, 16 positions in two rows with 0.079" row spacing. All positions are loaded.
