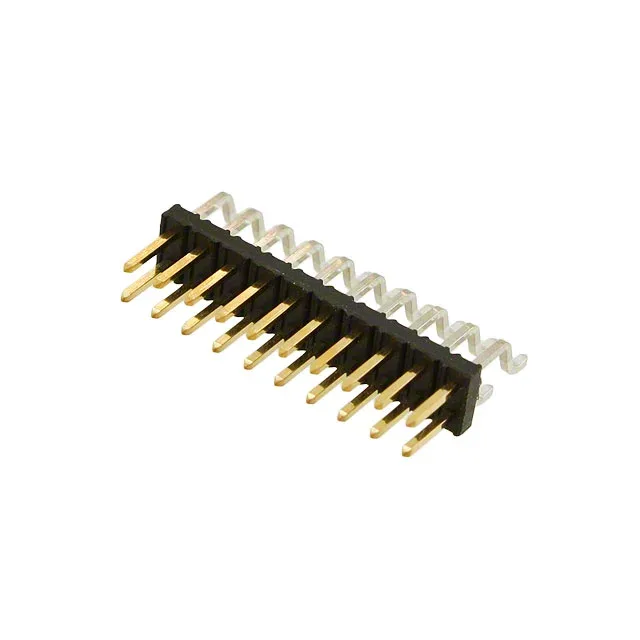

10112690-G03-10ULF — Amphenol product photo
Amphenol

10112690-G03-10ULF Amphenol ICC Minitek 2.00mm 20-Pin SMT

MPN10112690-G03-10ULF
Active

Amphenol ICC (FCI) Minitek® 2.00mm header, 20 circuits, unshrouded, surface-mount right-angle, 0.079" pitch, 3 A, 200 V, gold-plated mating contacts, UL94 V-0, RoHS, active production.

$2.8700Ref. price · indicative, final on quote
10112690-G03-10ULF datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10112690-G03-10ULF Technical Specifications
ParameterValue
SeriesMinitek® 2.00mm
GenderMale Pin
Mounting typeSurface Mount, Right Angle
Connector typeHeader
Fastening typePush-Pull
Voltage rating200V
Current rating3A
Operating temperature-55°C~125°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.157\" (4.00mm)
Insulation materialThermoplastic, Glass Filled
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTube
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.079\" (2.00mm)
Positions20
Row spacing - mating0.079\" (2.00mm)
Contact finish - postTin
Contact finish - matingGold or Gold, GXT™
Contact length - mating0.157\" (4.00mm)
Contact finish thickness - post78.7µin (2.00µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board-to-Cable Header for 2mm Pitch Systems

The 10112690-G03-10ULF: The square male pins are 0.157" long, a standard engagement depth for Minitek 2.00mm receptacles.

Mates with Minitek 2.00mm crimp-socket receptacles (e.g., 10112690 series) and IDC connectors for 2.00mm pitch ribbon cable. The unshrouded design gives the assembler visual access to the pin tips for alignment, but provides no keying — the mating half must be oriented correctly by the harness layout. No press-fit or solderless option; the board footprint must match the 2.00mm pitch and dual-row spacing.

Pitch and Contact Plating

Frequently asked questions

What is the mating connector for 10112690-G03-10ULF?

The mating half is a Minitek 2.00mm crimp-socket receptacle or IDC connector designed for 2.00mm pitch, 20-position, dual-row configuration.

Is 10112690-G03-10ULF compatible with 2mm pitch ribbon cable?

Yes — the 2.00mm pitch and 20-position dual-row layout match standard 2.00mm pitch ribbon cable. Use a Minitek 2.00mm IDC receptacle (not included) to terminate the cable. The unshrouded header provides no strain relief, so secure the cable bundle near the connector.
