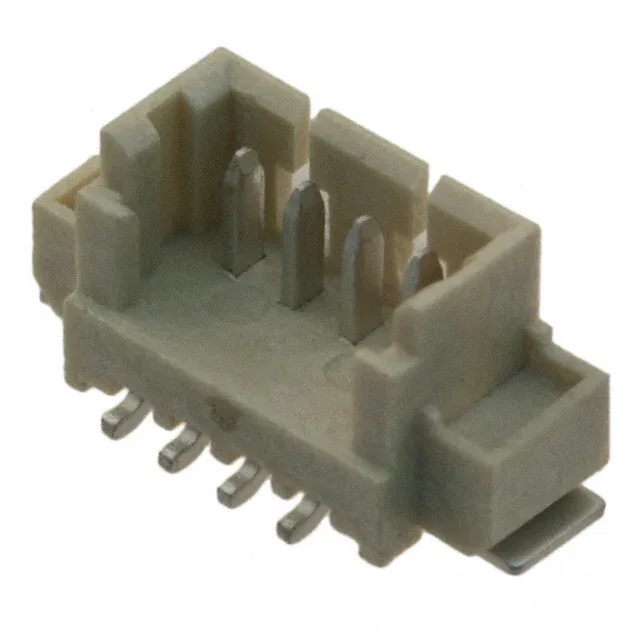

10114828-10104LF Pin Header, 1.25mm Pitch, 4-Pos SMT

MPN10114828-10104LF
Active

Amphenol ICC (FCI) 10114828-10104LF, Board to Cable/Wire Header, 4 positions, 1.25mm pitch, SMT, shrouded 3-wall, detent lock, tin finish, 1A, 125V

$0.4500Ref. price · indicative, final on quote
Amphenol 10114828-10104LF datasheet (PDF)
RoHSRoHS Compliant
Series10114828
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

10114828-10104LF key specifications
ParameterValue
Series10114828
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeDetent Lock
Voltage rating125V
Current rating1A
Operating temperature-40°C~105°C
Contact materialCopper Alloy
Insulation colorNatural
Insulation height0.185\" (4.70mm)
Insulation materialLiquid Crystal Polymer (LCP)

All specifications

10114828-10104LF additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 3 Wall
TerminationSolder
Contact shapeRectangular
Rows1
Pitch0.049\" (1.25mm)
Positions4
Contact finish - postTin
Contact finish - matingTin
Contact length - mating0.089\" (2.25mm)

Product details

1.25mm Pitch, 4-Position SMT Header — What It Carries

The 10114828-10104LF: The 4-position single-row layout keeps the PCB real estate small, suited for sensor or LED module harnesses where board space is tight. Rated 1A per contact at 125V, with a tin-on-tin mating interface. Tin plating is cost-effective for low-cycle applications — expect a few dozen matings before contact resistance starts to rise.

The 10114828 series offers the same 1.25mm pitch, tin finish, and detent lock in 3, 4, 5, and 6 positions. The 4-position version here sits between the 3-position (10114828-10103LF) and the 5-position (10114828-10105LF) — choose the circuit count that matches your harness wire count without leaving unused terminals.

Active lifecycle status, RoHS compliant.

Frequently asked questions

What is the pitch of 10114828-10104LF?

The mating pitch is 0.049" (1.25mm). This is the center-to-center spacing between adjacent pins — it determines the PCB footprint and the matching receptacle pitch.
