Amphenol 10118192-0002LF

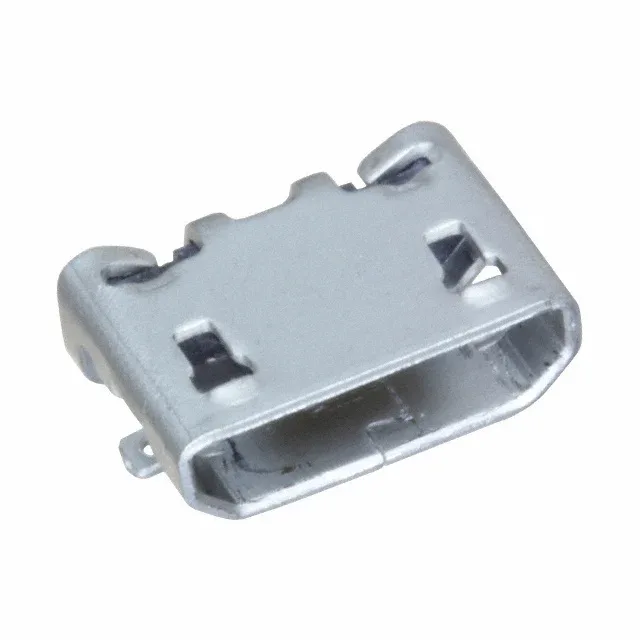

Amphenol 10118192-0002LF USB micro B Receptacle, 5 Contacts

MPN 10118192-0002LF
Active

Amphenol USB 2.0 micro B receptacle, 10118192-0002LF, 5 contacts, 1.8A, 100VAC, shielded, SMD right-angle, gold contacts, 10000 mating cycles.

$0.4300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

10118192-0002LF key specifications
ParameterValue
MountingSurface Mount, Right Angle
Connector typeUSB - micro B
Voltage - rated100VAC
Current rating1.8A
Positions5
Mounting featureHorizontal
Operating temperature-30°C~80°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)

All specifications

10118192-0002LF additional specifications
ParameterValue
FeaturesSolder Retention
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB 2.0 micro B Receptacle for SMD Assembly

It carries a 1.8A current rating per contact at 100VAC, with gold-plated contacts rated for 10,000 mating cycles — well above the typical 5,000-cycle spec for consumer-grade micro USB, making it a fit for devices that see frequent plug-unplug duty like handheld terminals or test equipment. The shielded steel shell with solder retention features keeps the connector anchored during reflow and provides a ground path for EMI containment.

Board Layout and Assembly Considerations

This is a right-angle SMD part, so the PCB footprint must account for the solder pads on the bottom side and the through-hole solder retention tabs that anchor the shell. The horizontal mounting feature means the USB plug inserts parallel to the board surface — verify the enclosure cutout height clears the mated plug body. The shielded shell is steel, stainless, which provides good EMI rejection but requires a solid ground plane connection on the PCB for best performance.

Durability and Environmental Range

Operating temperature spans -30°C to 80°C, which covers indoor consumer electronics and some sheltered industrial environments, but not extended outdoor exposure without additional sealing.
