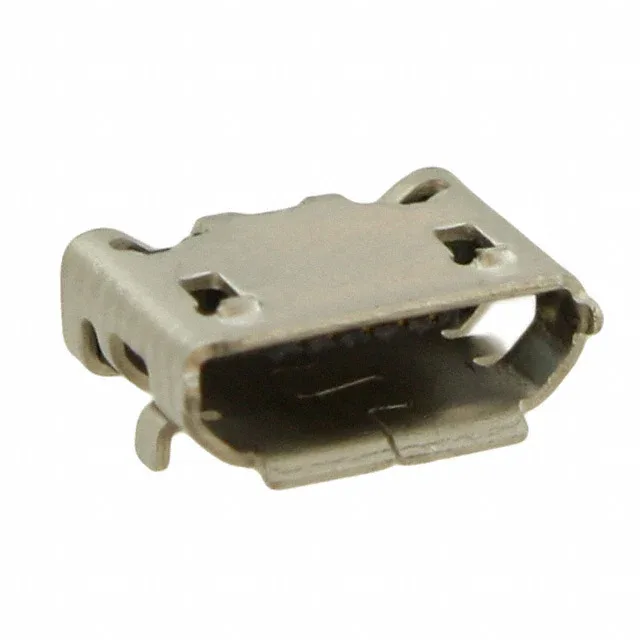

10118193-0001LF — Amphenol product photo
Amphenol

Amphenol FCI 10118193-0001LF USB 2.0 micro B Receptacle

MPN10118193-0001LF
Active

Amphenol FCI USB 2.0 micro B receptacle, 10118193-0001LF, 5 contacts, 1.8A per contact, 100VAC, shielded, gold-plated, SMT right-angle, 10000 mating cycles.

$0.4600Ref. price · indicative, final on quote
10118193-0001LF datasheet
StockIn Stock (19)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

10118193-0001LF Technical Specifications
ParameterValue
Mounting typeSurface Mount, Right Angle; Through Hole
Connector typeUSB - micro B
Voltage - rated100VAC
Current rating1.8A per Contact
Positions5
Mounting featureHorizontal
Operating temperature-30°C~80°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

USB 2.0 micro B Receptacle for High-Cycle Applications

The Amphenol FCI 10118193-0001LF is a USB 2.0 micro B receptacle with 5 contacts, rated 1.8A per contact at 100VAC. It's a shielded, right-angle SMT part with a stainless steel shell, gold-plated contacts, and an unusually high 10000 mating cycle rating — far above the typical 5000-cycle spec for this connector class.

Mounting and Termination Flexibility

This receptacle supports both surface-mount and through-hole termination, with a right-angle orientation for horizontal board-edge mounting. The Tape & Reel packaging is standard for automated pick-and-place.

The steel and stainless shell provides full EMI shielding, which is necessary to pass USB 2.0 radiated emissions limits in a noisy environment.

Frequently asked questions

What is the mounting type for 10118193-0001LF?

It supports both surface-mount and through-hole termination, right-angle orientation, for horizontal board-edge mounting. The solder retention feature holds the part during reflow.
