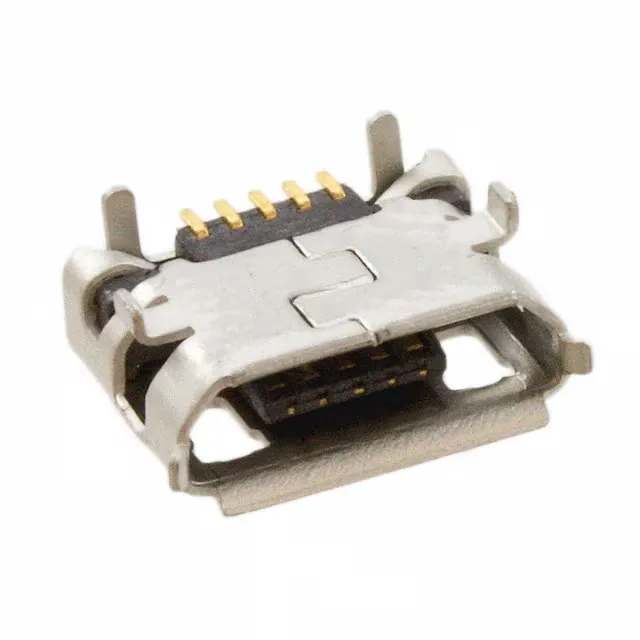

Amphenol 10118194-0001LF USB 2.0 micro B Receptacle

MPN10118194-0001LF
Active

Amphenol USB 2.0 micro B receptacle, 10118194-0001LF, 5 contacts, 1.8A per contact, 100VAC, shielded, SMT right-angle, 10,000 mating cycles, UL94 V-0.

$0.4600Ref. price · indicative, final on quote
Amphenol 10118194-0001LF datasheet (PDF)
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

10118194-0001LF key specifications
ParameterValue
MountingSurface Mount, Right Angle; Through Hole
Connector typeUSB - micro B
Voltage - rated100VAC
Current rating1.8A per Contact
Positions5
Mounting featureHorizontal
Operating temperature-30°C~80°C
Insulation colorBlack
Shell (Shielding material)Steel, Stainless
Material flammability ratingUL94 V-0
GenderReceptacle
PackageTape & Reel (TR); Cut Tape (CT)

All specifications

10118194-0001LF additional specifications
ParameterValue
FeaturesSolder Retention
ShieldingShielded
TerminationSolder
Mating cycles10000
Contact finishGold
SpecificationsUSB 2.0
Number of ports1

Product details

The Amphenol 10118194-0001LF is a USB 2.0 micro B receptacle — the standard connector for charging and data on portable devices, embedded modules, and industrial peripherals. It carries 5 contacts, rated 1.8A per contact at 100VAC, which is the typical power budget for a USB 2.0 device port. This is a surface-mount, right-angle part with solder retention features, so it's meant for reflow assembly on a PCB edge, not hand-wiring.

Why the 10,000 mating cycles matter

10,000 mating cycles is well above the USB-IF minimum of 1,500 cycles for micro-B connectors.

Frequently asked questions

Is 10118194-0001LF equivalent to other USB micro B connectors?

The 10118193-0001LF is a functionally identical sibling — same 5 contacts, 1.8A rating, shielded, gold-plated, active status. It shares the same base product number family and is a direct alternative for BOM cross-reference.
