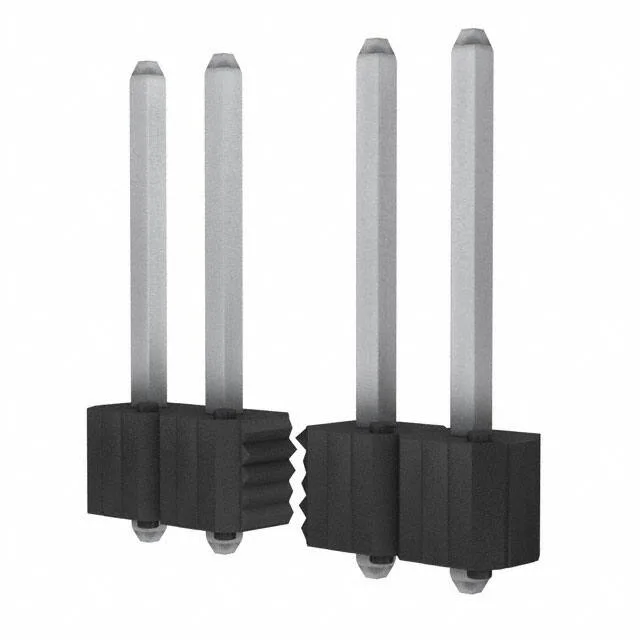

Amphenol ICC (FCI) BERGSTIK® II header, breakaway, order code 10118615-414029LF, 14 positions, single row, 0.100" (2.54mm) pitch, 3 A, tin-plated mating contacts, through-hole, solder termination.
Amphenol ICC (FCI) BERGSTIK® II header, breakaway, order code 10118615-414029LF, 14 positions, single row, 0.100" (2.54mm) pitch, 3 A, tin-plated mating contacts, through-hole, solder termination.
$0.4311Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Gender | Male Pin |
| Mounting type | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Copper Alloy |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 14 |
| Contact finish - post | Tin |
| Contact length - post | 0.028\" (0.70mm) |
| Overall contact length | 0.453\" (11.50mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.325\" (8.26mm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
Who supplies 10118615-414029LF and how is it quoted?
Amphenol ICC (FCI) is the manufacturer.
What is the closest pin-compatible alternative in this series?
The 14-position 10118615-414029LF shares the same footprint and plating with other single-row members of the series — match the position count to the circuit count.
What is the listed style for this connector?
The style is Board to Board, unshrouded header with push-pull fastening.
What compliance documentation does Amphenol ICC (FCI) provide?
RoHS compliance is standard for the BERGSTIK® II series. The manufacturer provides a product drawing and datasheet with material and plating specifications.
