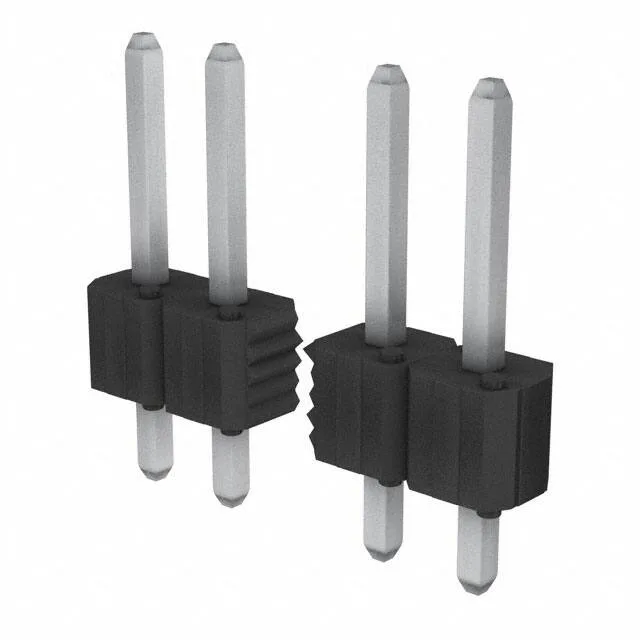

Amphenol ICC (FCI) BERGSTIK® II header, order code 10118615-436021, 36 positions, single row, 0.100" (2.54mm) pitch, 3A, tin-lead-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Current rating | 3A |
| Operating temperature | -65°C~130°C |
| Contact material | Copper Alloy |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Style | Board to Board |
| Package | Bag |
| Parameter | Value |
|---|---|
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 36 |
| Contact length - post | 0.095\" (2.41mm) |
| Overall contact length | 0.425\" (10.80mm) |
| Contact finish - mating | Tin-Lead |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
The 10118615-436021 is the 36-circuit member of Amphenol ICC (FCI)'s BERGSTIK® II unshrouded breakaway header line, a single-row board-to-board interconnect. It carries tin-lead-plated square male pins on 0.100" (2.54mm) pitch and is rated 3A per contact.
