Unshrouded breakaway header for board-to-board stacking
The 10118884-507001LF is a 7-circuit member of Amphenol ICC (FCI)'s BERGSTIK® II header line, configured as a single-row, unshrouded breakaway header for board-to-board interconnects.

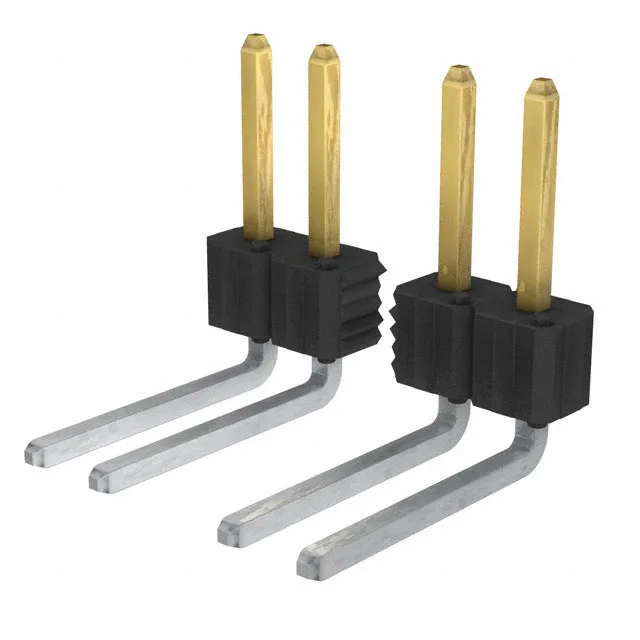

Amphenol BERGSTIK II 10118884-507001LF Header, 7 Pos, 2.54mm
MPN10118884-507001LF
Active
Amphenol ICC (FCI) BERGSTIK® II header, order code 10118884-507001LF, 7 positions, single row, 0.100" (2.54mm) pitch, gold mating contacts, through-hole right-angle, solder termination, UL94 V-0.
$0.8672Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | BERGSTIK® II |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.095\" (2.41mm) |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 7 |
| Contact finish - post | Tin |
| Contact length - post | 0.295\" (7.49mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.230\" (5.84mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
Product details
Frequently asked questions
What compliance documentation is available for this header?
RoHS and REACH compliance documentation is provided by Amphenol ICC (FCI) — request the certificate of compliance for the specific lot at RFQ.
How does the 10118884-507001LF feed into a pick-and-place line?
The part ships in a Bag package — no tape-and-reel option is listed, so the line feed is manual tray or tube placement, not reel-fed. Confirm the packaging quantity with the supplier before scheduling the build.
